Наименование параметра и размера	Значение для насоса 2НВБМ-160(Р)/1000

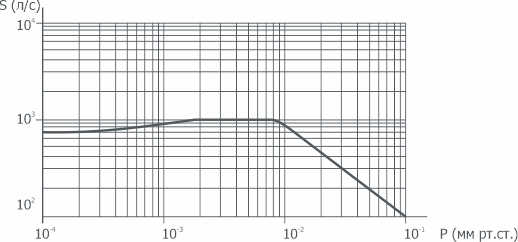

Быстрота действия в диапазоне рабочих давлений на входе в насос от 1,3х10⁰ до 1,3х10^-1 Па (от 1х10^-2 до 1х10^-3 мм рт.ст.), л/с	800
Наибольшее выпускное давление, Па (мм рт.ст.), не менее	93(0,7)
Потребляемая мощность при номинальном напряжении 400 В для сети трёхфазного тока, Вт	2000
Охлаждение насоса	Водяное
Расход охлаждающей воды температурой от плюс 10 °С до плюс 20 °С, л/ч, не менее	145
Объём заливаемой рабочей жидкости, л	5
Марка рабочей жидкости (вакуумное минеральное масло)	VACMA OIL 300
Масса, кг, не более*	60

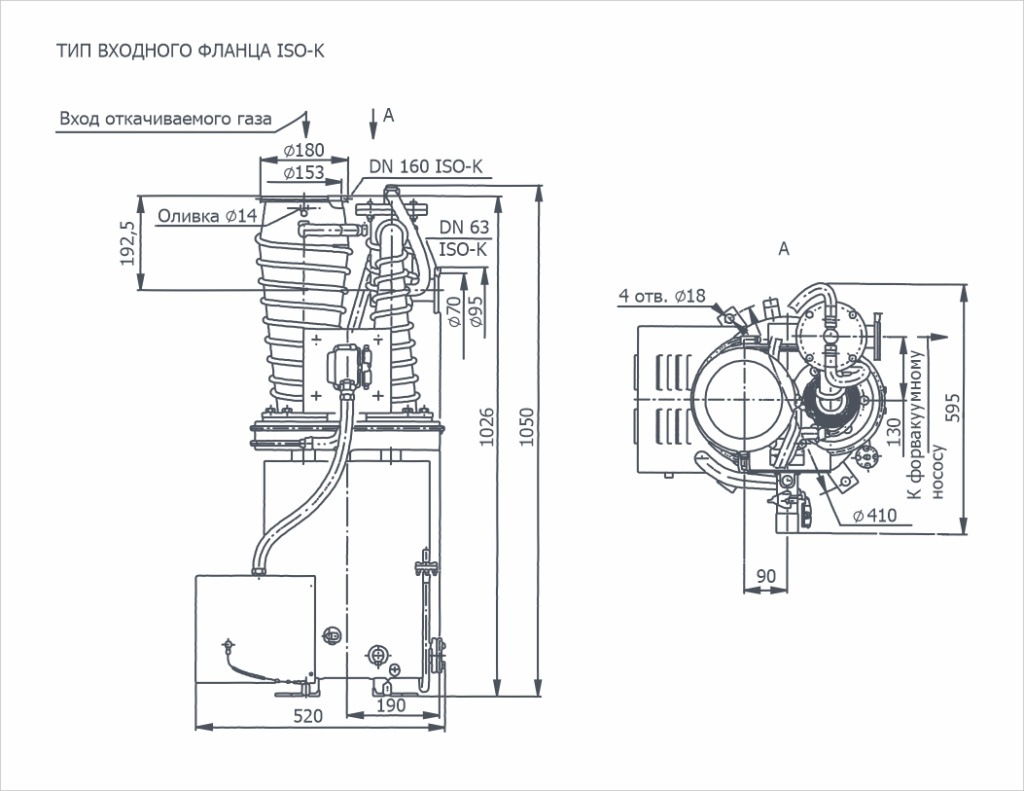

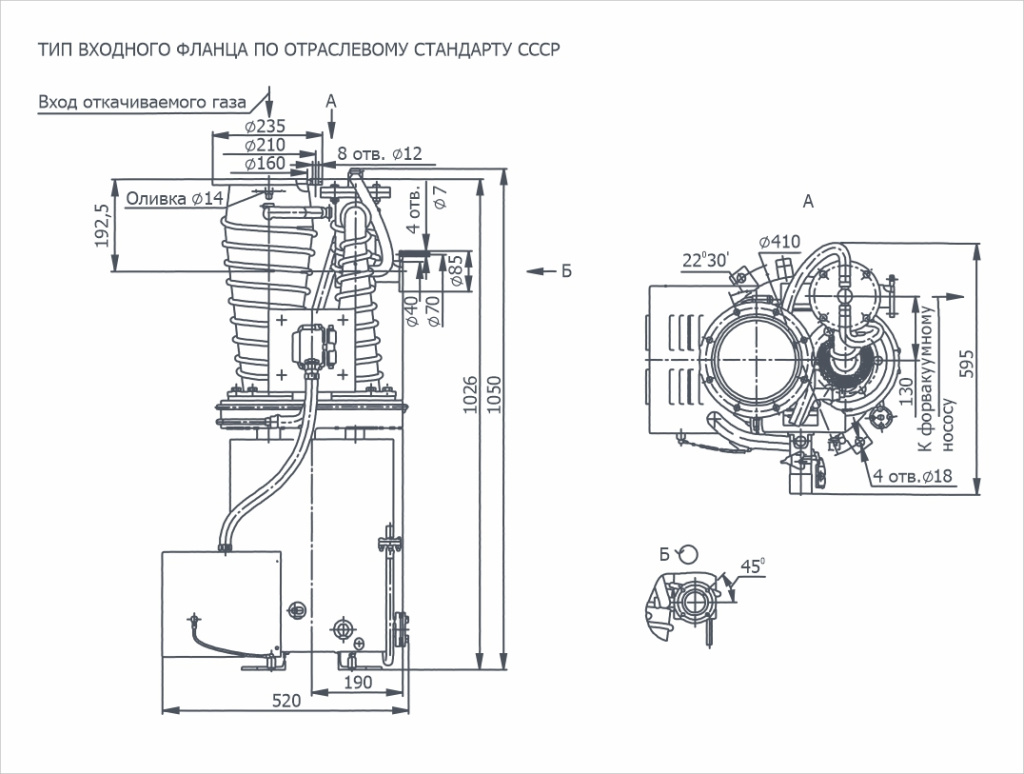

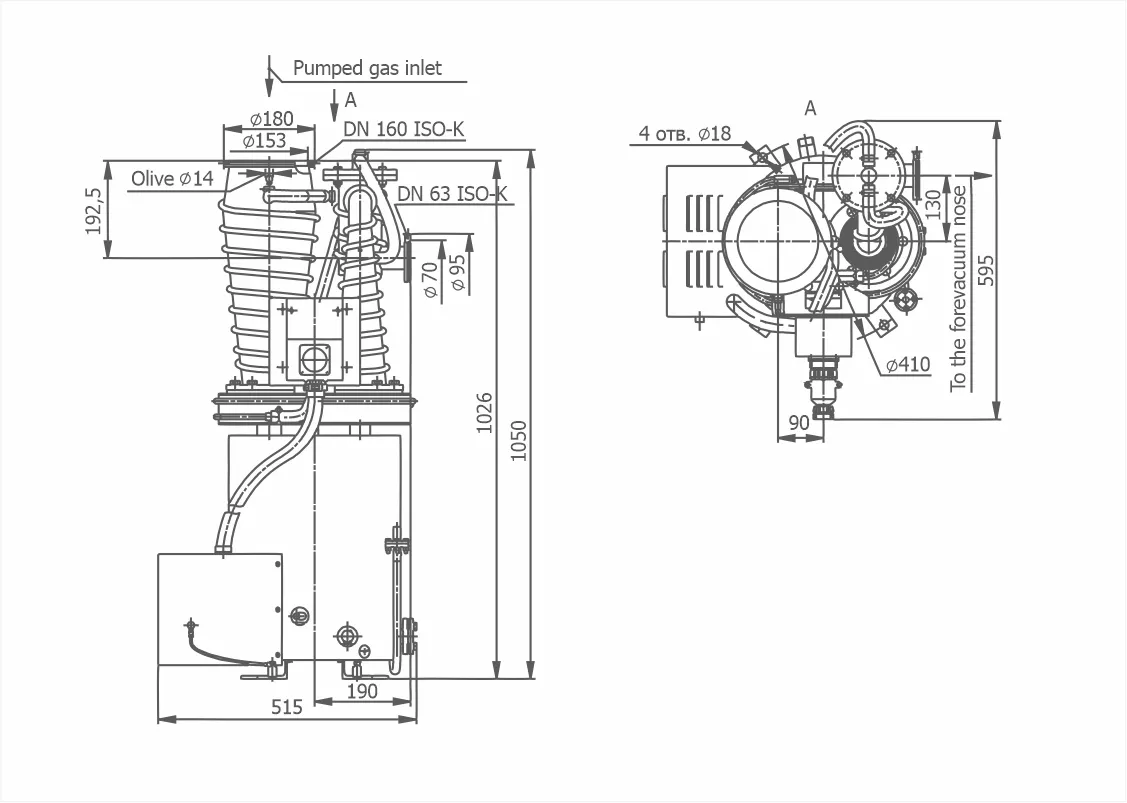

Габаритные размеры, мм, не более** - высота - длина - ширина	1050 595 515
ПРИМЕЧАНИЕ: * Без заглушек, деталей их крепления и рабочей жидкости. ** Без заглушек и деталей их крепления.

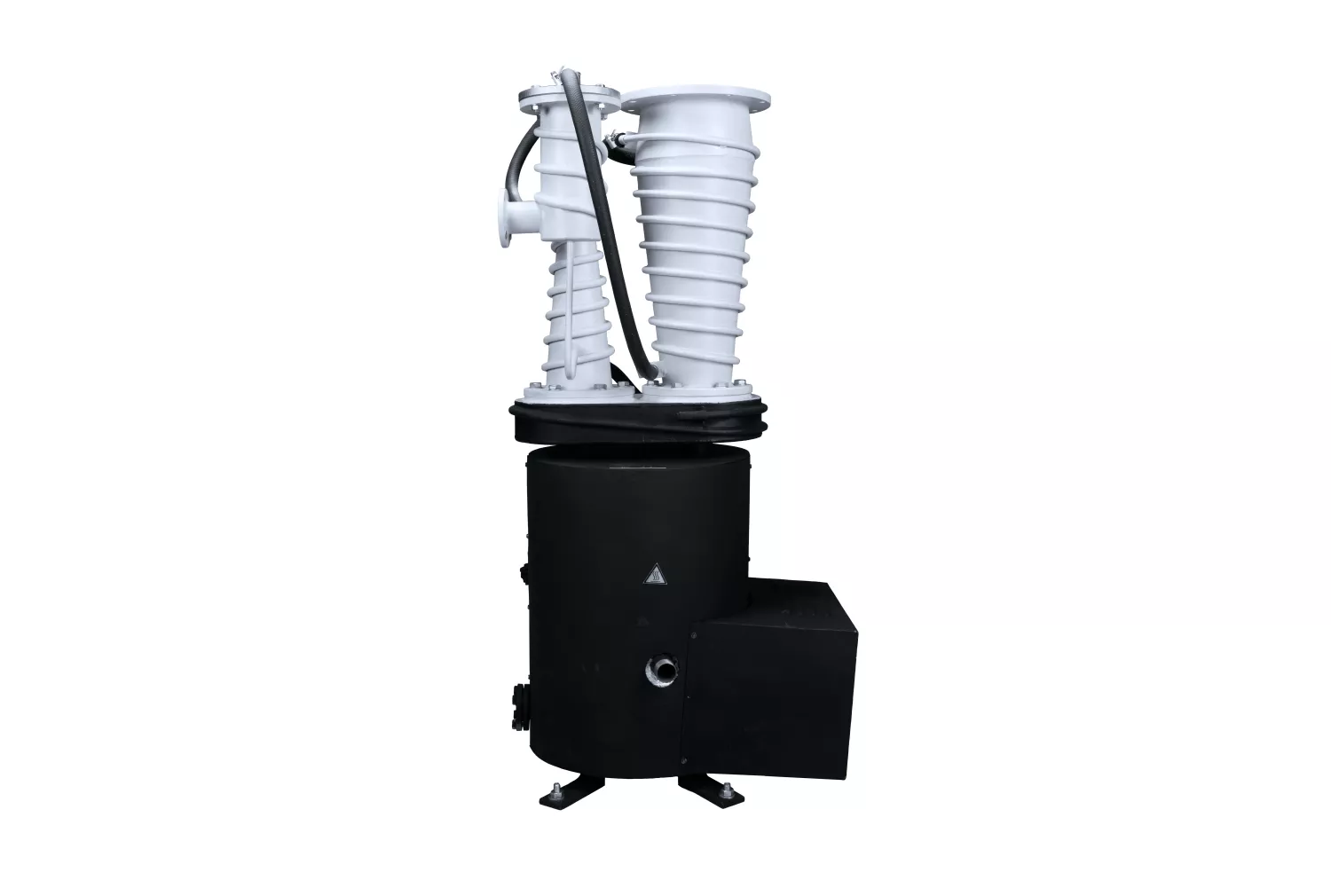

VBP-160/1000 Oil Booster Pump
