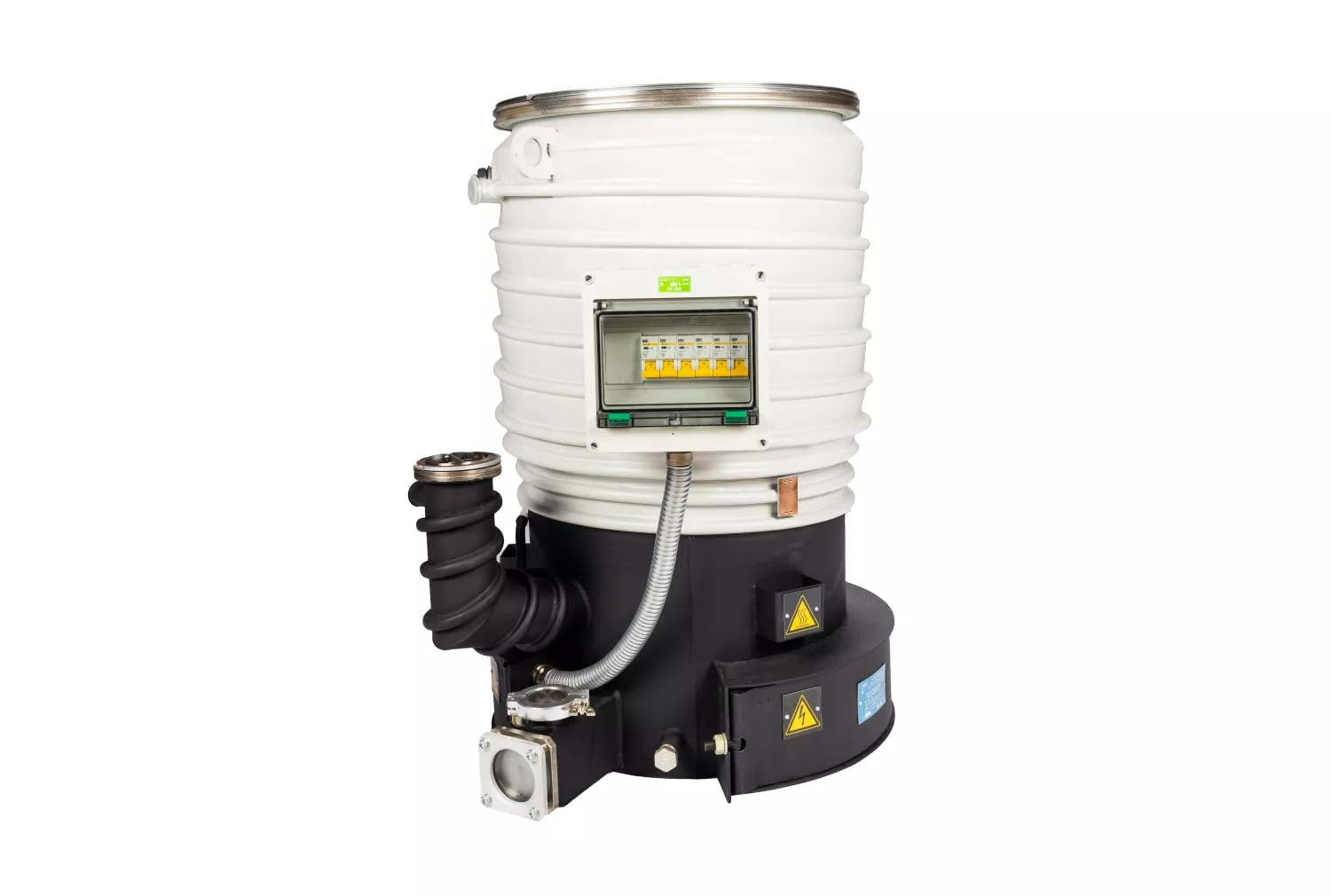

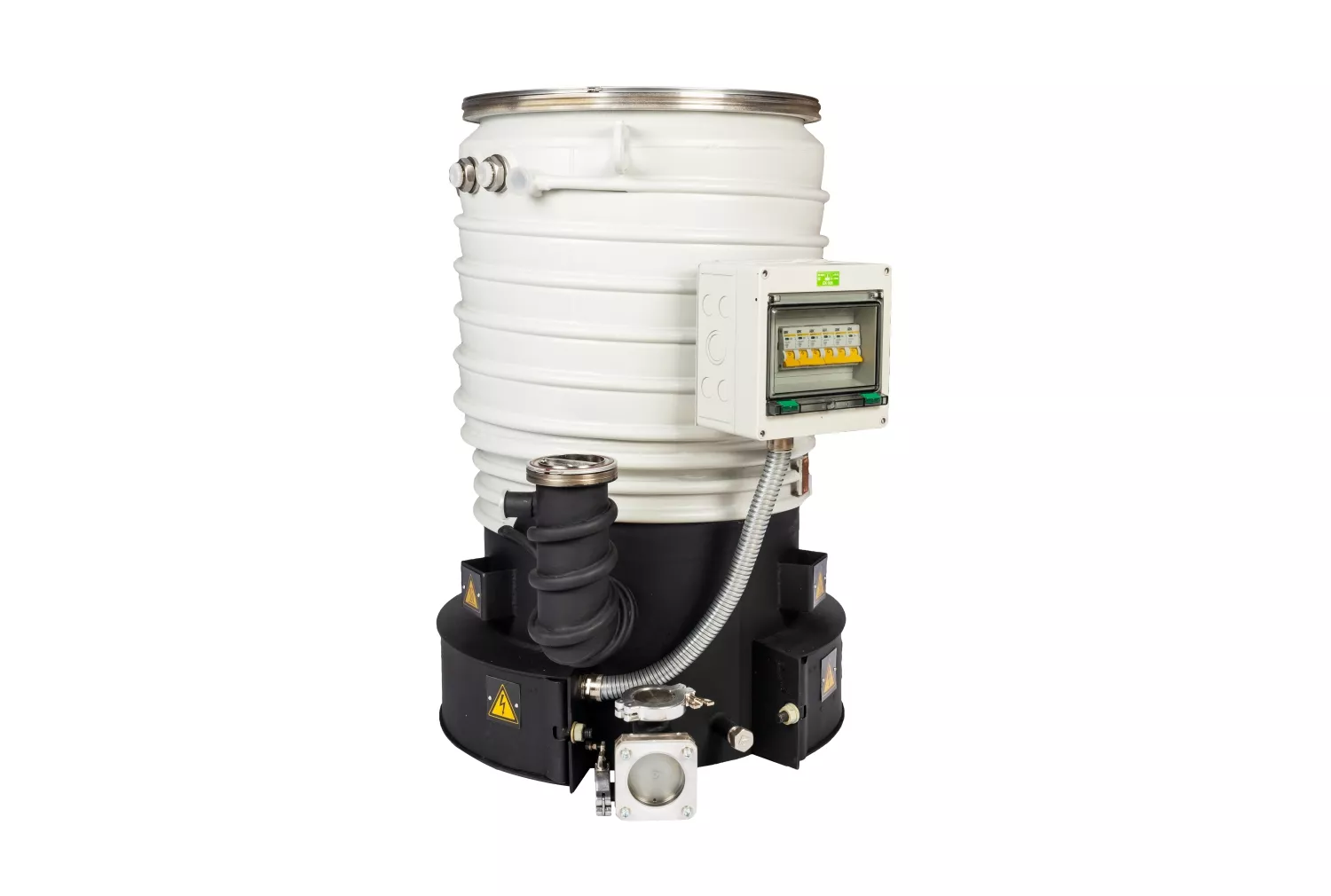

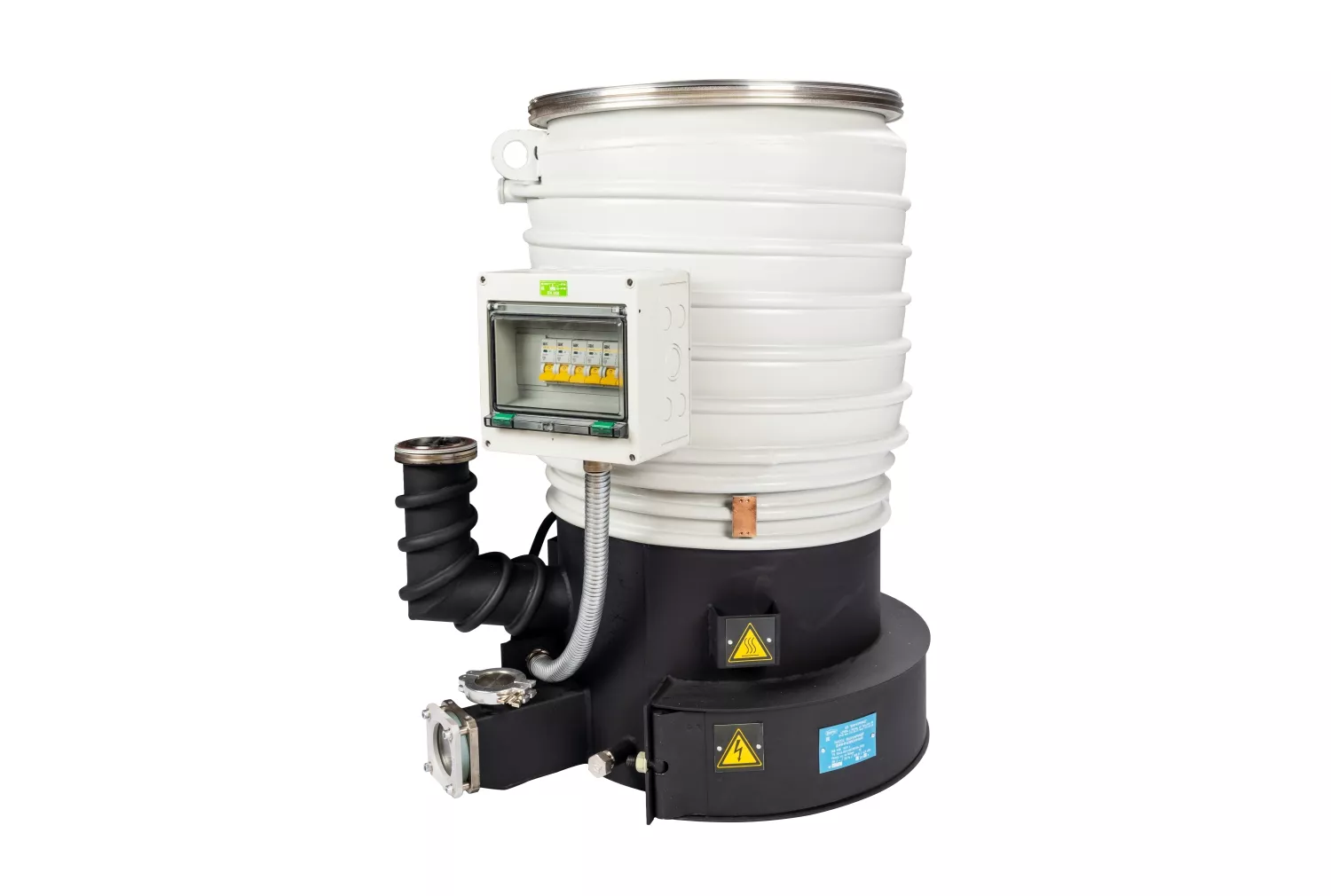

VDP-400 Oil Diffusion Pump
Type: Oil Pressure range: high vacuum Speed of action: 7200 l/s ✦ High vacuum connection DN 400 ISO-K ✦ Forevacuum connection DN 63 ISO-K ✦ Carbon steel housing material, stainless steel bottom ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 101 m3/h ✦ Type of electrical connection directly through the connector or a block of electric switches ✦ Supply voltage 220/380V ✦ Power 4.8kW ✦ Pump fluid filling, min / max, 1.7/3.4 l
Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description
OIL DIFFUSION PUMP VDP-400 The diffusion vacuum pump from the Vacma brand VDP-400 is a high-vacuum pump with a speed of action of 7200 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for foring the pumped gas from the outlet pipe of the diffusion vacuum pump. As a rule, the VDP-400 diffusion pump is used with an integrated trap or an water flow trap, which reduce the reverse flow of working fluid vapors into the pumped volume. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved. The VDP-400 vacuum pump includes a steam line - a four-stage nozzle system with a fairly simple principle of operation - it consists in the process of diffusion of the molecules of the pumped gas into the jet flowing from the nozzles of the working fluid (steam). ✔ According to consumer reviews, the VDP-400 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required. ✔ On request, the ND-400 diffusion vacuum pump can have an electrical connection type: automatic control unit or direct connection via connector, ISO-K type of inlet flange, the price will depend on the configuration. You can buy a VDP-400 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.
Область применения НД-500 Химическая промышленность Производство кристаллов Металлургия Машиностроение Производство электрооборудования Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление
Technical specifications OIL DIFFUSION PUMP VDP-400

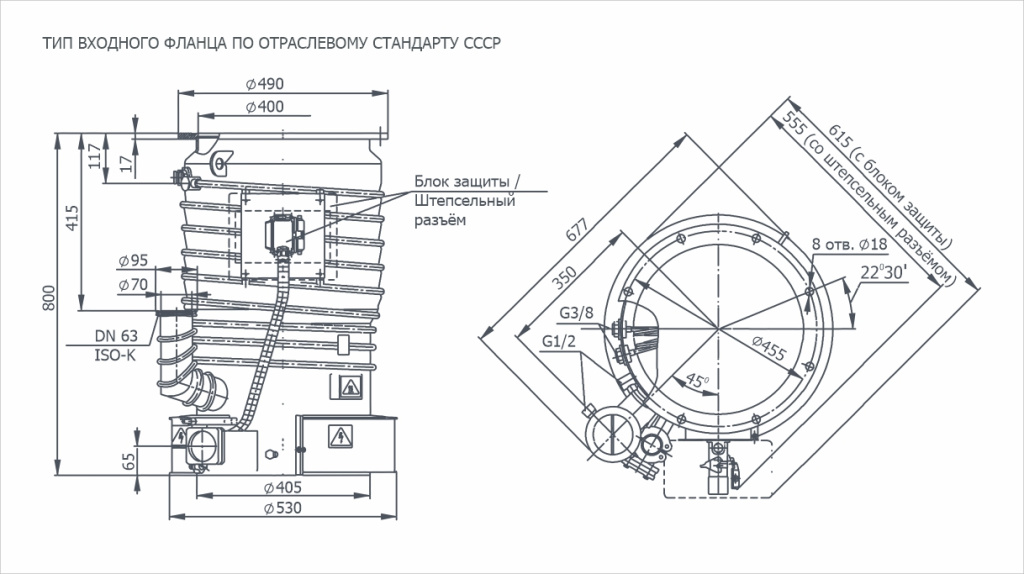

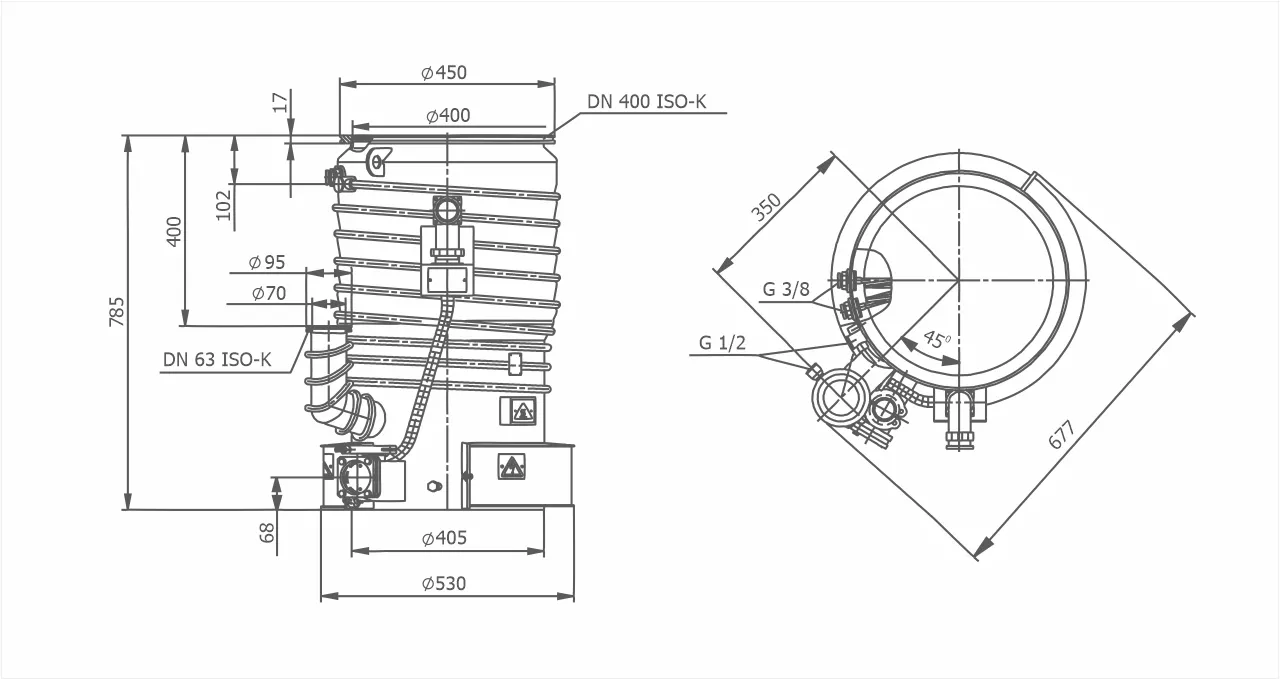

Dimensional drawing OIL DIFFUSION PUMP VDP-400

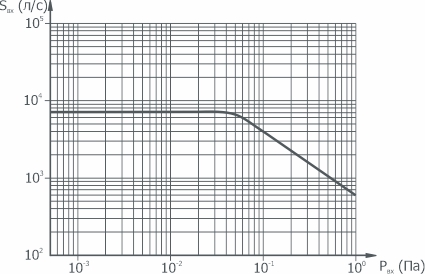

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP-400
Type: Oil Pressure range: high vacuum Speed of action: 7200 l/s ✦ High vacuum connection DN 400 ISO-K ✦ Forevacuum connection DN 63 ISO-K ✦ Carbon steel housing material, stainless steel bottom ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 101 m3/h ✦ Type of electrical connection directly through the connector or a block of electric switches ✦ Supply voltage 220/380V ✦ Power 4.8kW ✦ Pump fluid filling, min / max, 1.7/3.4 l
Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description
OIL DIFFUSION PUMP VDP-400 The diffusion vacuum pump from the Vacma brand VDP-400 is a high-vacuum pump with a speed of action of 7200 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for foring the pumped gas from the outlet pipe of the diffusion vacuum pump. As a rule, the VDP-400 diffusion pump is used with an integrated trap or an water flow trap, which reduce the reverse flow of working fluid vapors into the pumped volume. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved. The VDP-400 vacuum pump includes a steam line - a four-stage nozzle system with a fairly simple principle of operation - it consists in the process of diffusion of the molecules of the pumped gas into the jet flowing from the nozzles of the working fluid (steam). ✔ According to consumer reviews, the VDP-400 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required. ✔ On request, the ND-400 diffusion vacuum pump can have an electrical connection type: automatic control unit or direct connection via connector, ISO-K type of inlet flange, the price will depend on the configuration. You can buy a VDP-400 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.
Область применения НД-500 Химическая промышленность Производство кристаллов Металлургия Машиностроение Производство электрооборудования Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление
Technical specifications OIL DIFFUSION PUMP VDP-400
|
Наименование параметра и размера |
Значение насоса НД-400(Р) |
|
Быстрота действия по воздуху при давлении: 1 Па (7,5х10-3мм рт. ст.), л/с, не менее 1х10-1Па (7,5х10-4мм рт. ст.), л/с, не менее 1х10-2Па (7,5х10-5мм рт. ст.), л/с, не менее |
600 4000 7200 |
| Быстрота действия форвакуумных насосов при давлении 26 Па (0,2 мм рт.ст) в выходном сечении должна быть, м3/ч (л/с), не менее | 101 (28) |
| Наибольшее выпускное давление, Па (мм рт. ст.), не менее | 26,6 (0,2) |
| Предельное остаточное давление при температуре окружающего воздуха от +100С до +350С, Па (мм рт.ст.), не более | 3х10-4 (2,25х10-6) |
| Норма герметичности, Па х м3/с (л х мкм рт.ст./с), не более | 1х10-10(7,5х10-7) |
| Охлаждение насоса | Водяное |
|
Расход воды для насоса, м3/ч: - на корпус - на маслоотражатель |
0,25 0,04 |
| Напряжение питания трёхфазной, четырёхпроводной сети, В | 400 |
| Частота питающей сети, Гц | 50 |
| Потребляемая мощность, кВт | 4,8 |
| Количество нагревателей, шт | 6 |
| Марка рабочей жидкости (вакуумное минеральное масло) | ВАКМА ОЙЛ 500 |
|
Количество рабочей жидкости, л: - max - min |
5,6 4,5 |
|
Габаритные размеры, мм, не более* - высота - длина - ширина со штепсельным разъёмом - ширина с блоком автоматов |
785(800***) 677 555 615 |
| Macca, кг, не более ** | 58(80***) |
|
ПРИМЕЧАНИЕ: * Без заглушек и деталей их крепления. ** Без заглушек, деталей их крепления и рабочей жидкости. *** Значение для НД-400Р |
|

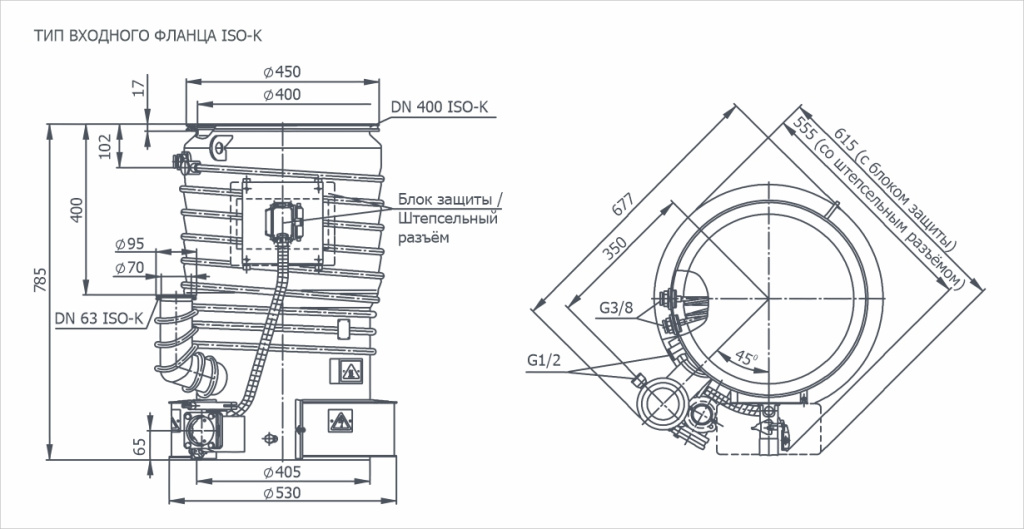

Dimensional drawing OIL DIFFUSION PUMP VDP-400
Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP-400
