VDP-630 Oil Diffusion Pump

VDP-630 Oil Diffusion Pump

Есть в наличии

Добавить в сравнение

Распечатать страницу

Нет в наличии

Description

Dimensions

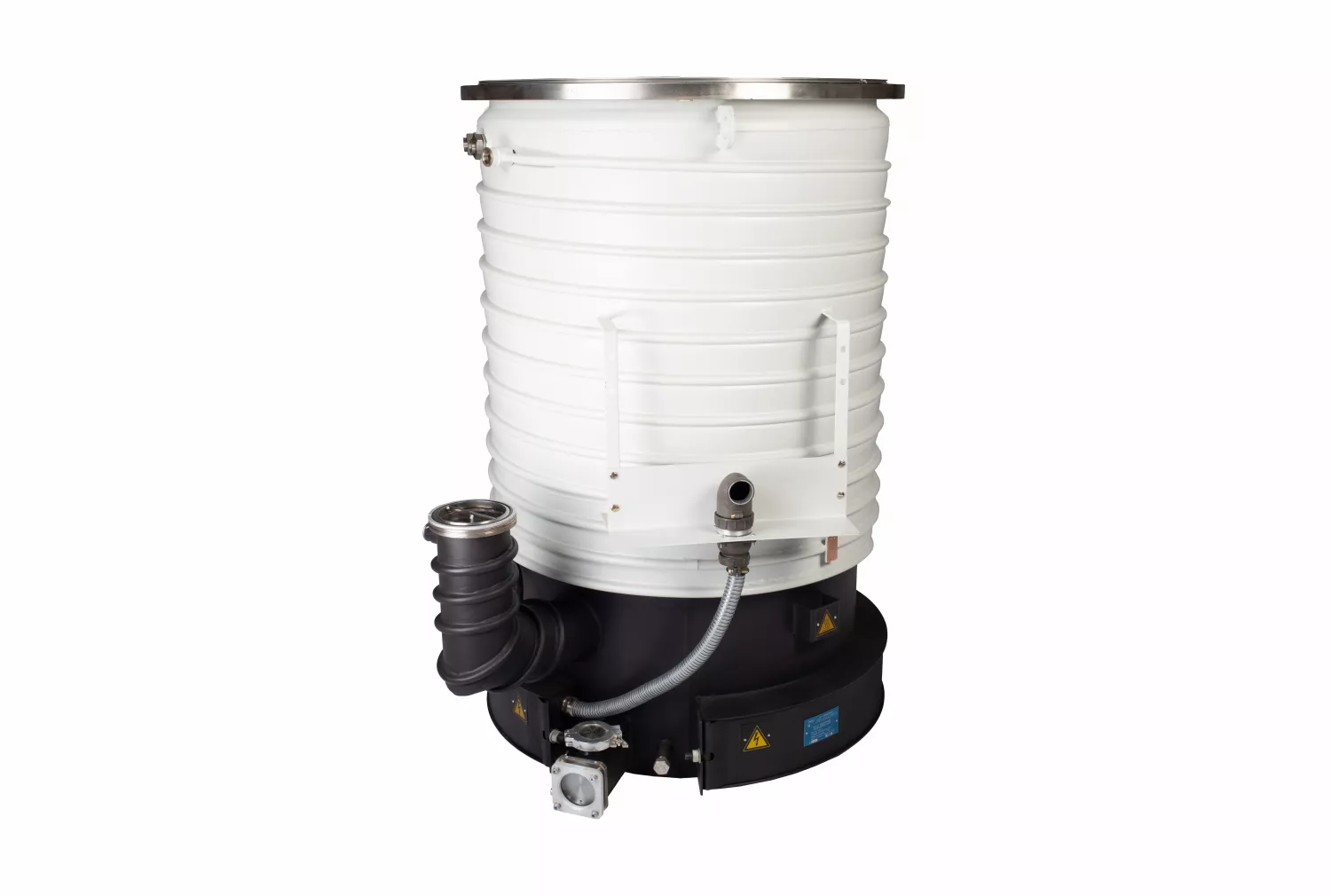

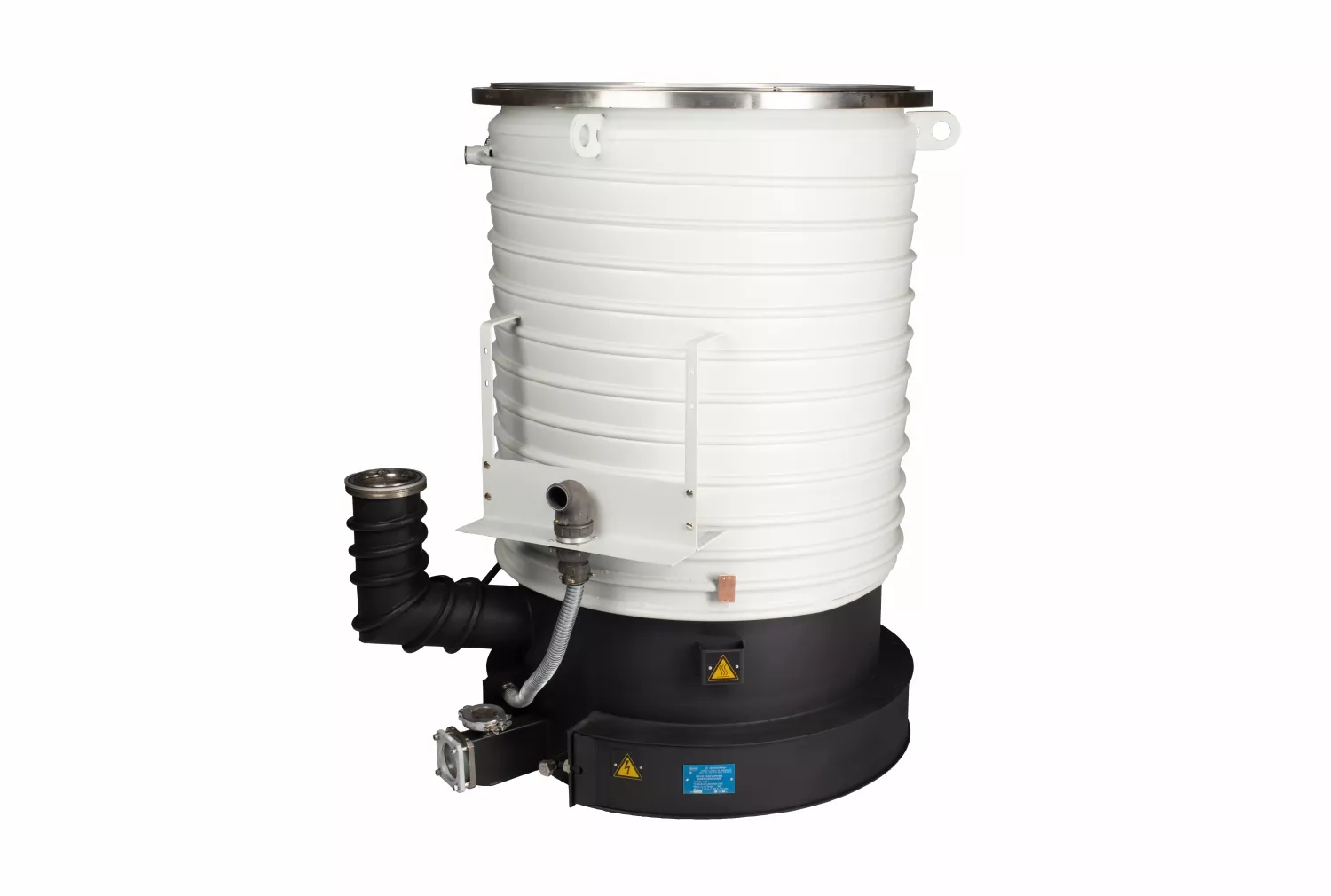

VDP-630 Oil Diffusion Pump Type: Oil Pressure range: high vacuum Speed of action: 18000 l/s ✦ High vacuum connection DN 630 ISO-F ✦ Forevacuum connection DN 100 ISO-K ✦ Carbon steel housing material, stainless steel bottom ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 253 m3/h ✦ Type of electrical connection directly through the connector or a block of electric switches ✦ Supply voltage 220/380V ✦ Power 12 kW ✦ Pump fluid filling, min / max, 7.0/11.00 l Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description OIL DIFFUSION PUMP VDP-630 The diffusion vacuum pump from the Vacma brand VDP-630 is a high-vacuum pump with a speed of action of 18,000 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for foring the pumped gas from the outlet pipe of the diffusion vacuum pump. As a rule, the VDP-630 diffusion pump is used with an flow trap or an integrated trap or multi-trap, which reduce the reverse flow of working fluid vapors into the pumped volume. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved. The VDP-630 vacuum pump includes a steam line - a four-stage nozzle system with a fairly simple principle of operation - it consists in the process of diffusion of the molecules of the pumped gas into the jet flowing from the nozzles of the working fluid (steam). ✔ According to consumer reviews, the VDP-630 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required. ✔ On request, the VDP-630 diffusion vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. You can buy a VDP-630 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.

Область применения НД-630 Химическая промышленность Производство кристаллов Металлургия Машиностроение Производство электрооборудования Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление
Technical specifications OIL DIFFUSION PUMP VDP-630

Наименование параметра и размера	Значение насоса НД-630
Быстрота действия по воздуху при давлении: 1 Па (7,5х10^-3мм рт. ст.), л/с, не менее 1х10^-1Па (7,5х10^-4 мм рт. ст.), л/с, не менее; 1х10^-2Па (7,5х10^-5мм рт. ст.), л/с, не менее	1500 10000 18000
Быстрота действия форвакуумных насосов при давлении 26 Па (0,2 мм рт.ст) в выходном сечении должна быть, м³/ч (л/с), не менее	254(70,3)
Наибольшее выпускное давление, Па (мм рт. ст.), не менее	26,6 (0,2)
Предельное остаточное давление при температуре окружающего воздуха от +10⁰С до +35⁰С, Па (мм рт.ст.), не более	3х10^-4 (2,25х10^-6)
Норма герметичности, Па х м³/с (л х мкм рт.ст./с), не более	1х10^-10 (7,5х10^-7)
Охлаждение насоса	Водяное
Расход воды для насоса, м³/ч: - на корпус - на маслоотражатель	0,60 0,08
Напряжение питания трёхфазной, четырёхпроводной сети, В	400
Частота питающей сети, Гц	50
Потребляемая мощность, кВт	12
Количество нагревателей, шт	12
Марка рабочей жидкости (вакуумное минеральное масло)	ВАКМА ОЙЛ 500
Количество рабочей жидкости, л: - max - min	12 9,5
Габаритные размеры, мм, не более* - высота - длина - ширина со штепсельным разъёмом - ширина с блоком автоматов	1130 1005 775 835
Macca, кг, не более **	180
ПРИМЕЧАНИЕ: * Без заглушек и деталей их крепления. ** Без заглушек, деталей их крепления и рабочей жидкости.

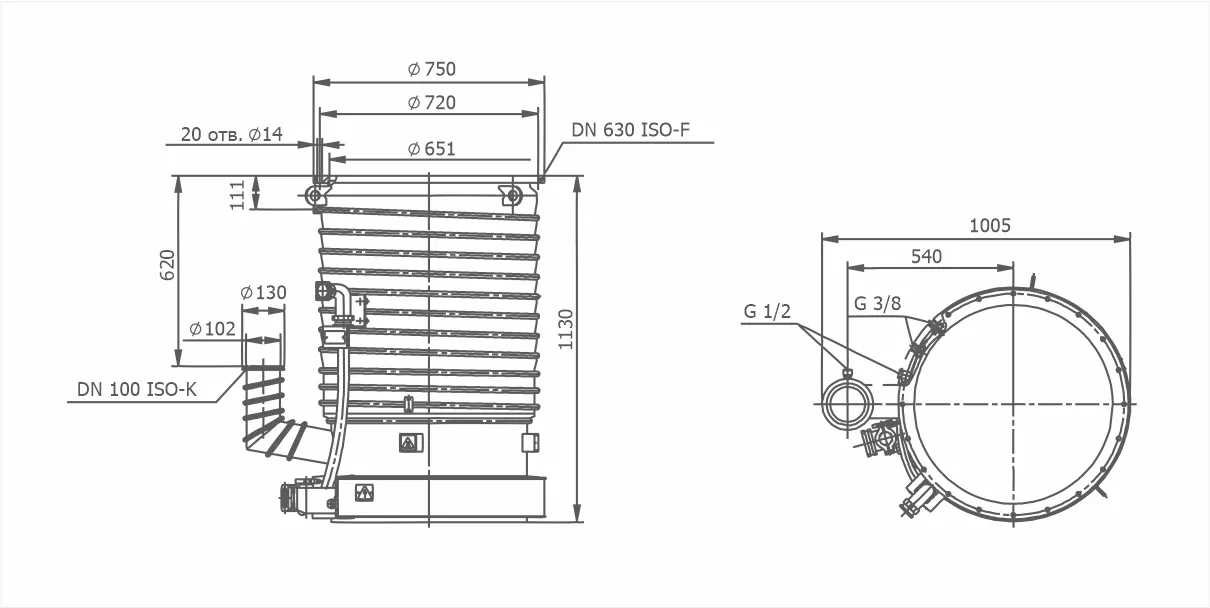

Dimensional drawing OIL DIFFUSION PUMP VDP-630

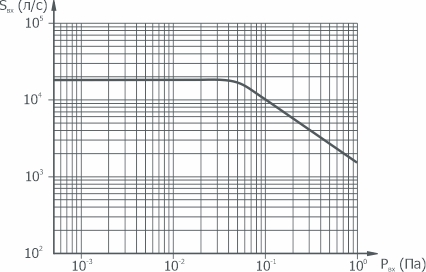

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP-630

График зависимости быстроты действия от давления на входе в насос НД-630 АО Вакууммаш
