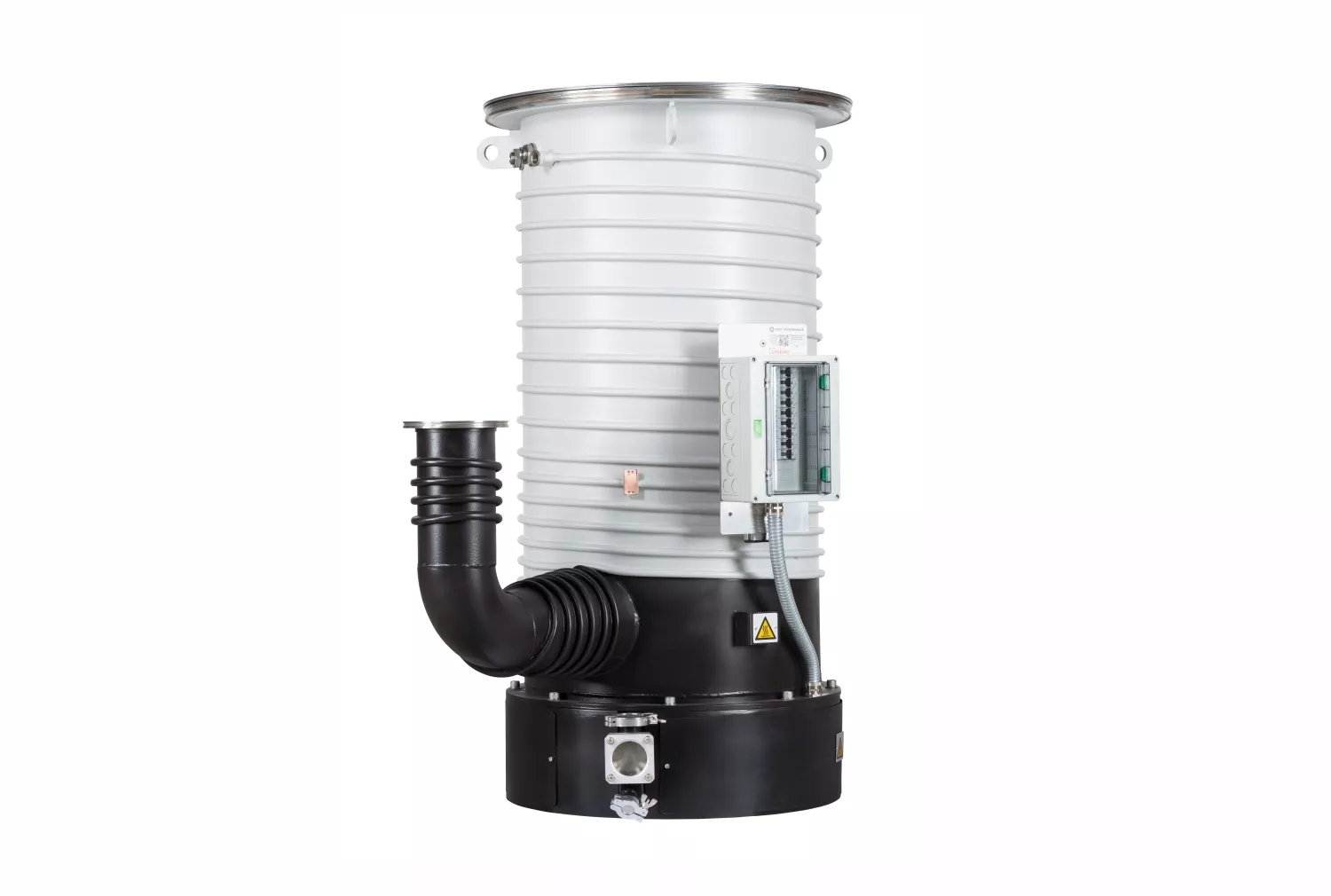

VDP Jet-320 Oil Diffusion Pump with Ejector stage

VDP Jet-320 Oil Diffusion Pump with Ejector stage
Есть в наличии
VDP Jet-320 Oil Diffusion Pump with Ejector stage
Добавить в сравнение
Распечатать страницу
Подписаться
Нет в наличии
Description
Dimensions
VDP Jet-320 Oil Diffusion Pump with Ejector stage Type: Oil Pressure range: high vacuum Speed of action: 3000 l/s ✦ High vacuum connection DN 320 ISO-K ✦ Forevacuum connection DN 63 ISO-K ✦ The case is made of carbon steel ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 324 m3/h ✦ Type of electrical connection directly through the connector or a block of electric switches ✦ Supply voltage 380V ✦ Power 2,4 kW ✦ Pump fluid filling, min / max, 1.0/1.4 l Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-320 The diffusion vacuum pump from the Vacma brand VDP Jet-320 is a high-vacuum pump with a speed of action of 3000 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for foring the pumped gas from the outlet pipe of the diffusion vacuum pump. ✔ According to consumer reviews, the VDP Jet-320 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required. ✔ On request, the VDP Jet-320 diffusion vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. You can buy a VDP Jet-320 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.

Область применения НД-320Э Имитация космического производства Аналитический инжинирингОхлаждение и кондиционирование воздуха Вакуумная сушка Пропитка Сублимационные системыИзготовление авиационных компонентов ТермообработкаПроизводство ламп и труб Химическая промышленность Производство кристаллов Металлургия Машиностроение Производство электрооборудования Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление

Technical specifications OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-320

Наименование параметра и размера


Значение насоса НД-320Э

Быстрота действия по воздуху при давлении на входе в насос, л/с, не менее:
1,0х100 Па (7,5х10-3 мм рт.ст.)
2,6х10-1 Па (2х10-3 мм рт.ст.)
1,0х10-1 Па (7,5х10-4 мм рт.ст.)
1,0х10-2 Па (7,5х10-5 мм рт.ст.)

800
3000
2500
2250
Наибольшее выпускное давление, Па (мм рт.ст.), не менее 53 (0,40)
Предельное остаточное давление, Па (мм рт.ст.), не более 2,5х10-4 (1,9х10-6)
Норма герметичности, Па·м3/c, (л∙мкм рт.ст./c), не более 1,0х10-10 (7,5х10-7)
Охлаждение насоса Водяное
Расход воды для насоса, м3/ч:
- на корпус
- на маслоотражатель
0,25
0,04
Потребляемая мощность, кВт 3,6
Количество нагревателей, шт 3
Марка рабочей жидкости (вакуумное силиконовое масло) VACMA OIL 704
Объём заливаемой рабочей жидкости для насоса, л:
- max
- min
3
2,5
Напряжение питания трёхфазной, четырехпроводной сети, В* 400
Габаритные размеры, мм, не более**
- высота
- длина
- ширина
788
768
545
Масса, кг, не более*** 95

ПРИМЕЧАНИЕ:
* Понижение напряжения питания приводит к понижению быстроты действия. .
** Без заглушек, деталей их крепления и рабочей жидкости..
*** Без заглушек и деталей их крепления.

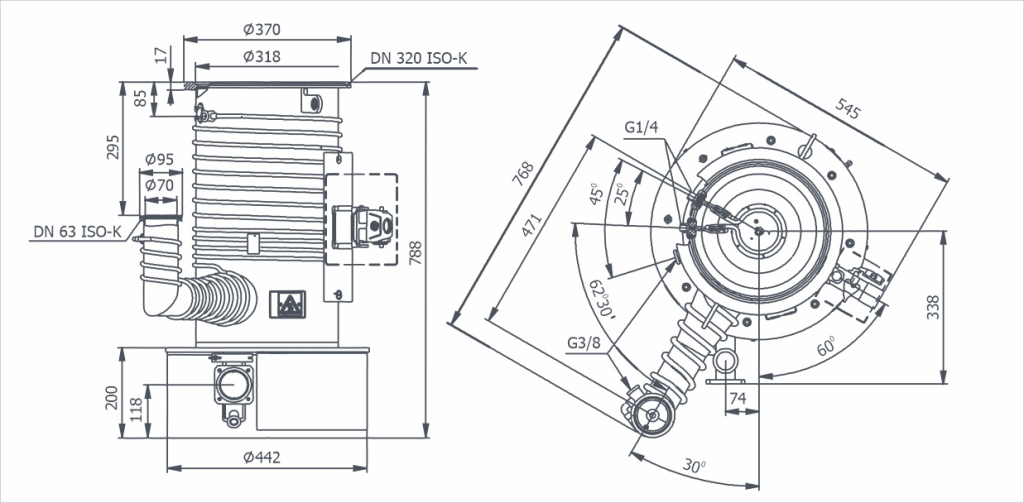

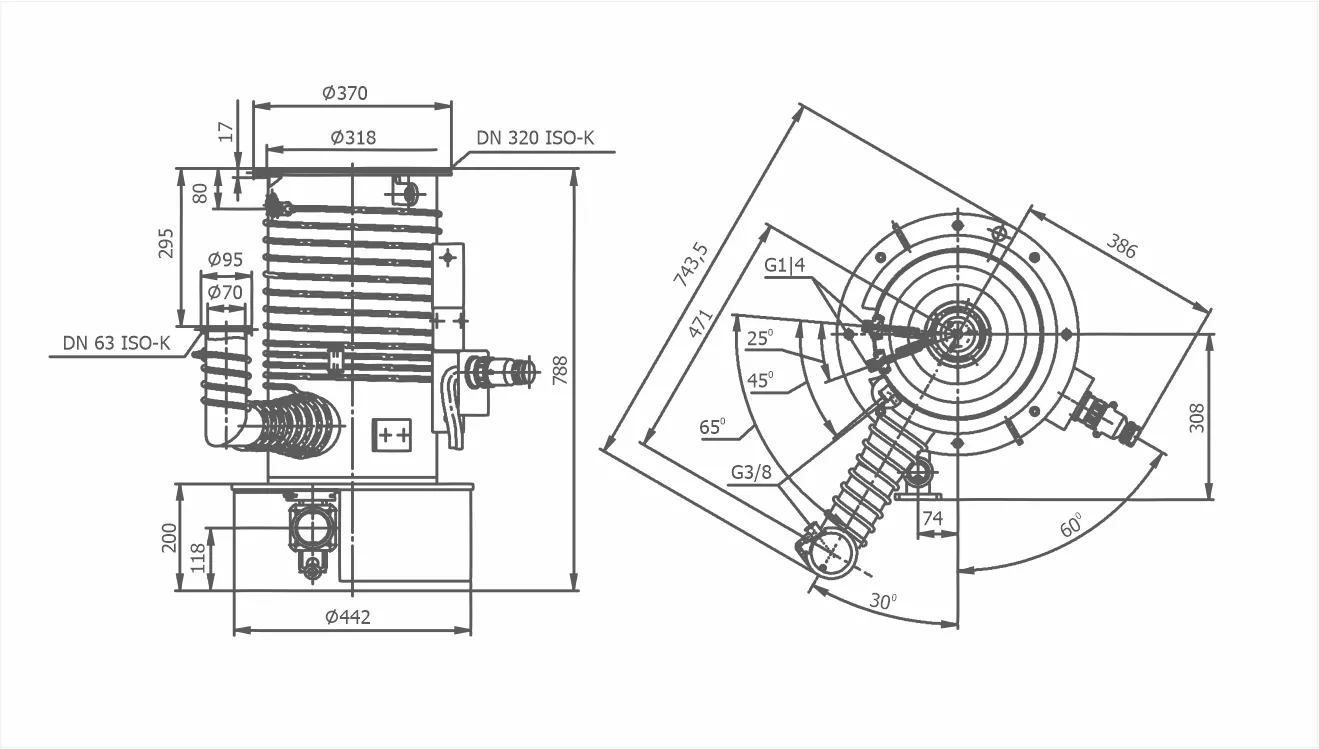

Dimensional drawing OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-320Габаритный чертёж НД-320Э

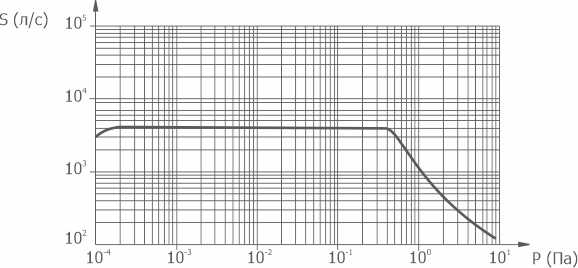

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP-320

График зависимости быстроты действия от давления на входе в насос НД-320Э
