Наименование параметра	Значение для ловушки ЛП-500
Проводимость при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), л/с, не менее	5800
Рекомендуемый расход воды (при температуре воды от 4 до 25⁰С), л/ч	270
Пролет паров масла при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), мг/мин	2х10^-2
Габаритные размеры, мм, не более - длина - ширина - высота	718 612 193
Масса, кг, не более	41

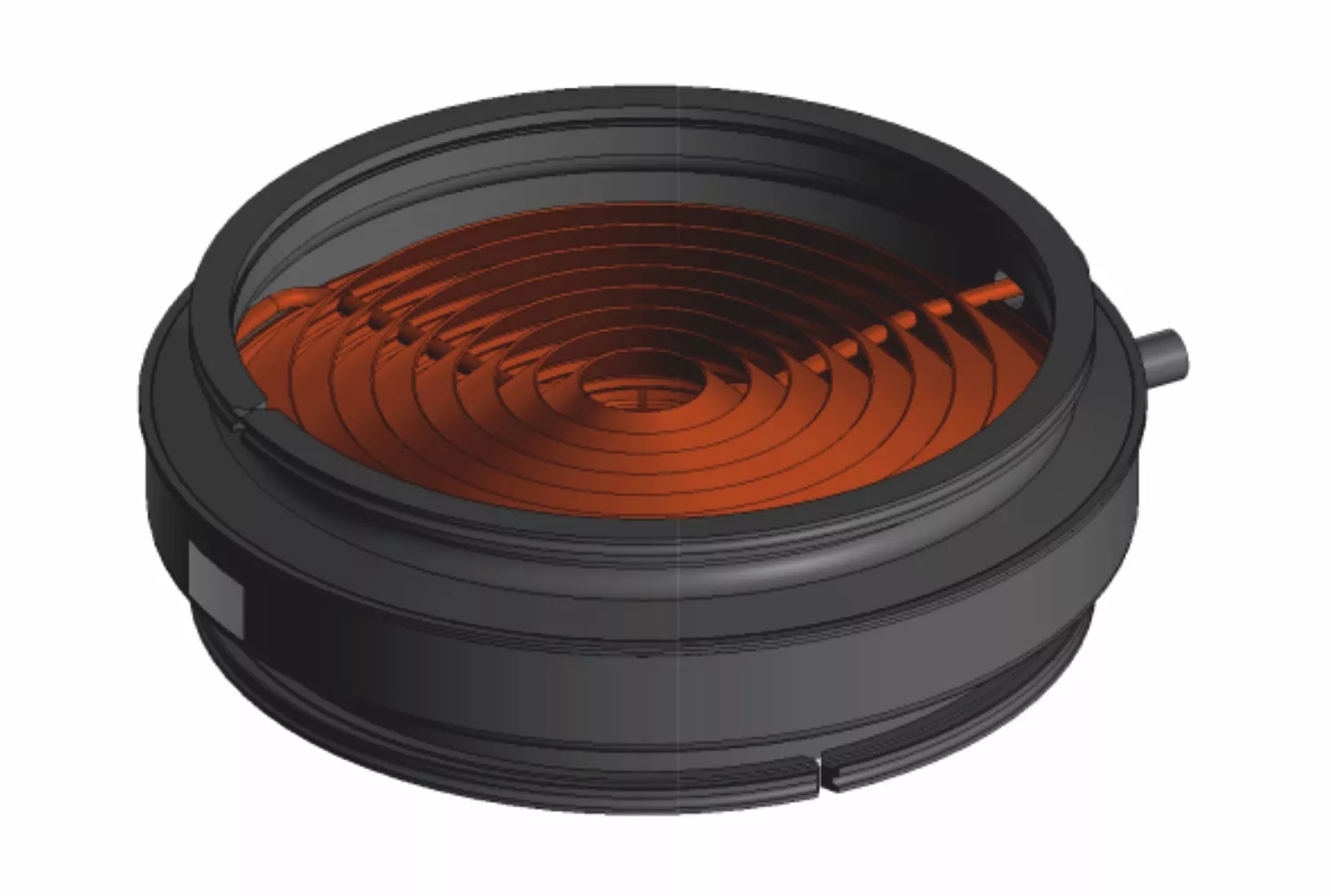

LP-500 Water Baffle

Проточная ловушка ЛП-500: описание, преимущества, технические характеристики, габаритный чертёж, рекламные материалы

Преимущества ЛП-500

Технические характеристики ЛП-500

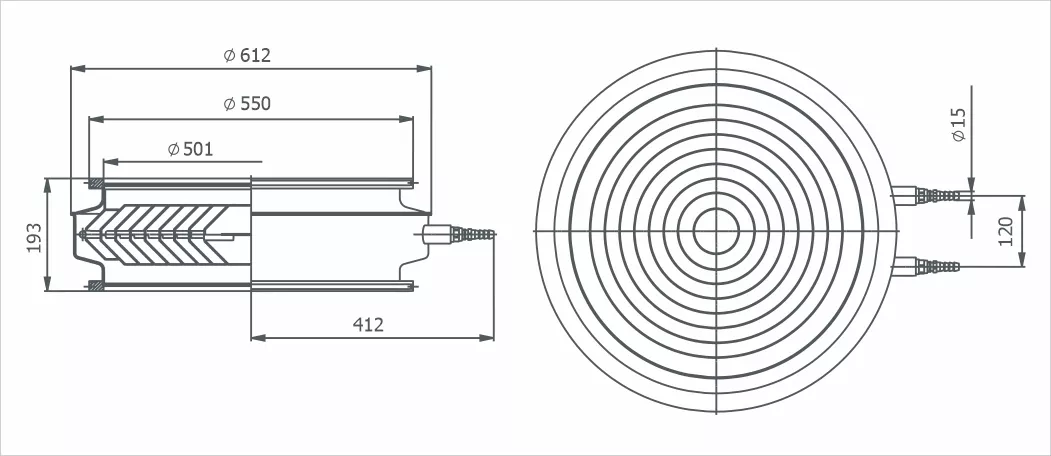

Габаритный чертёж ЛП-500
