Наименование параметра	Значение для ловушки ЛП-630
Проводимость при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), л/с, не менее	10100
Рекомендуемый расход воды (при температуре воды от 4 до 25⁰С), л/ч	390
Пролет паров масла при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), мг/мин	3,1х10^-2
Габаритные размеры, мм, не более - длина - ширина - высота	864,5 750 140
Масса, кг, не более	68

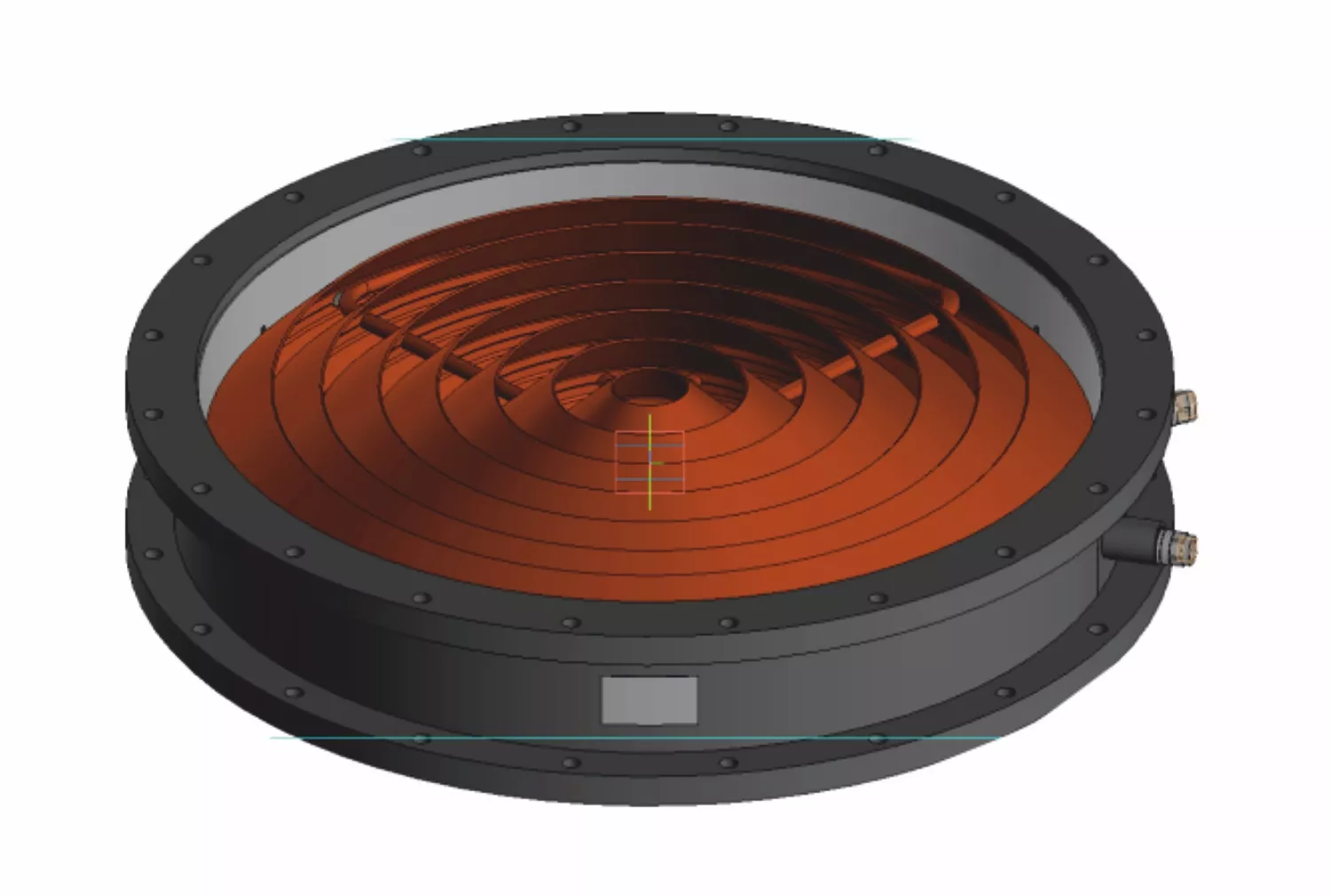

LP-630 Water Baffle

Проточная ловушка ЛП-630: описание, преимущества, технические характеристики, габаритный чертёж, рекламные материалы

Преимущества ЛП-630

Технические характеристики ЛП-630

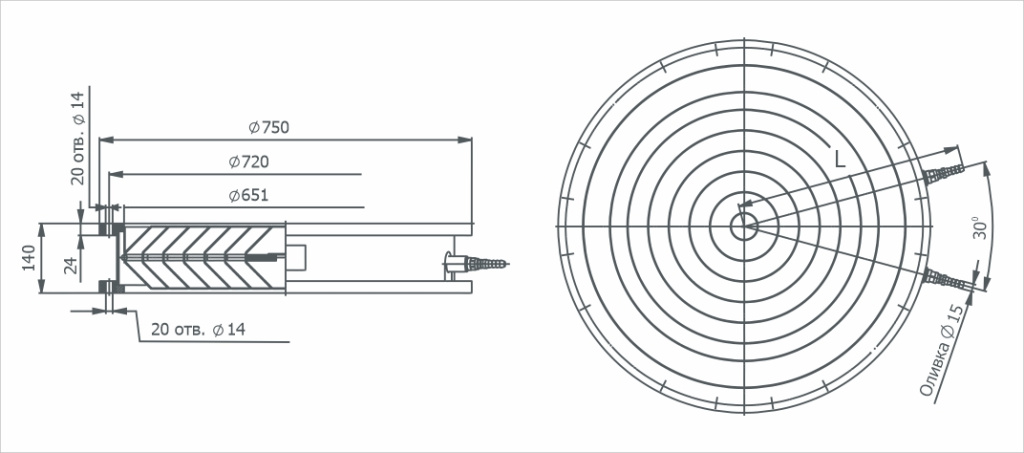

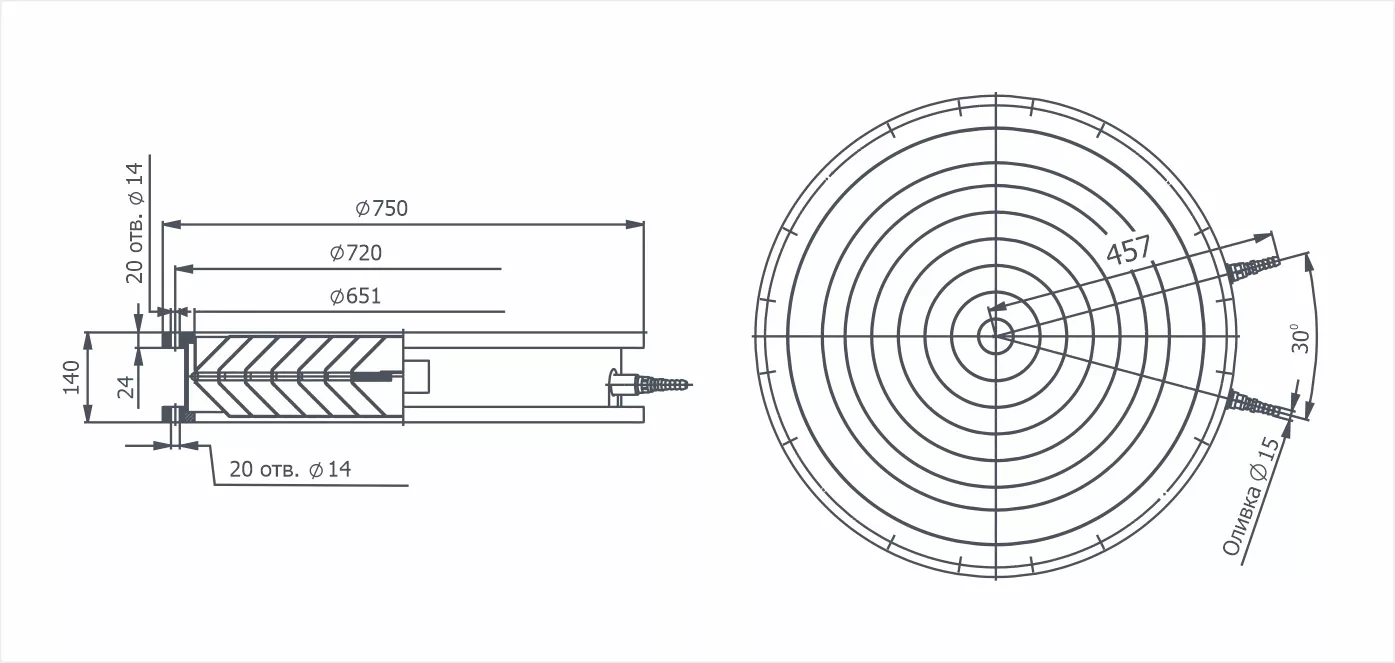

Габаритный чертёж ЛП-630
