Наименование параметра	Значение для ловушки ЛП-400(Р)
Проводимость при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), л/с, не менее	3200
Рекомендуемый расход воды (при температуре воды от 4 до 25⁰С), л/ч	180
Пролет паров масла при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), мг/мин	1,3х10^-2
Габаритные размеры, мм, не более - длина - ширина - высота	618 512 193 (191)
Масса, кг, не более	35(39)

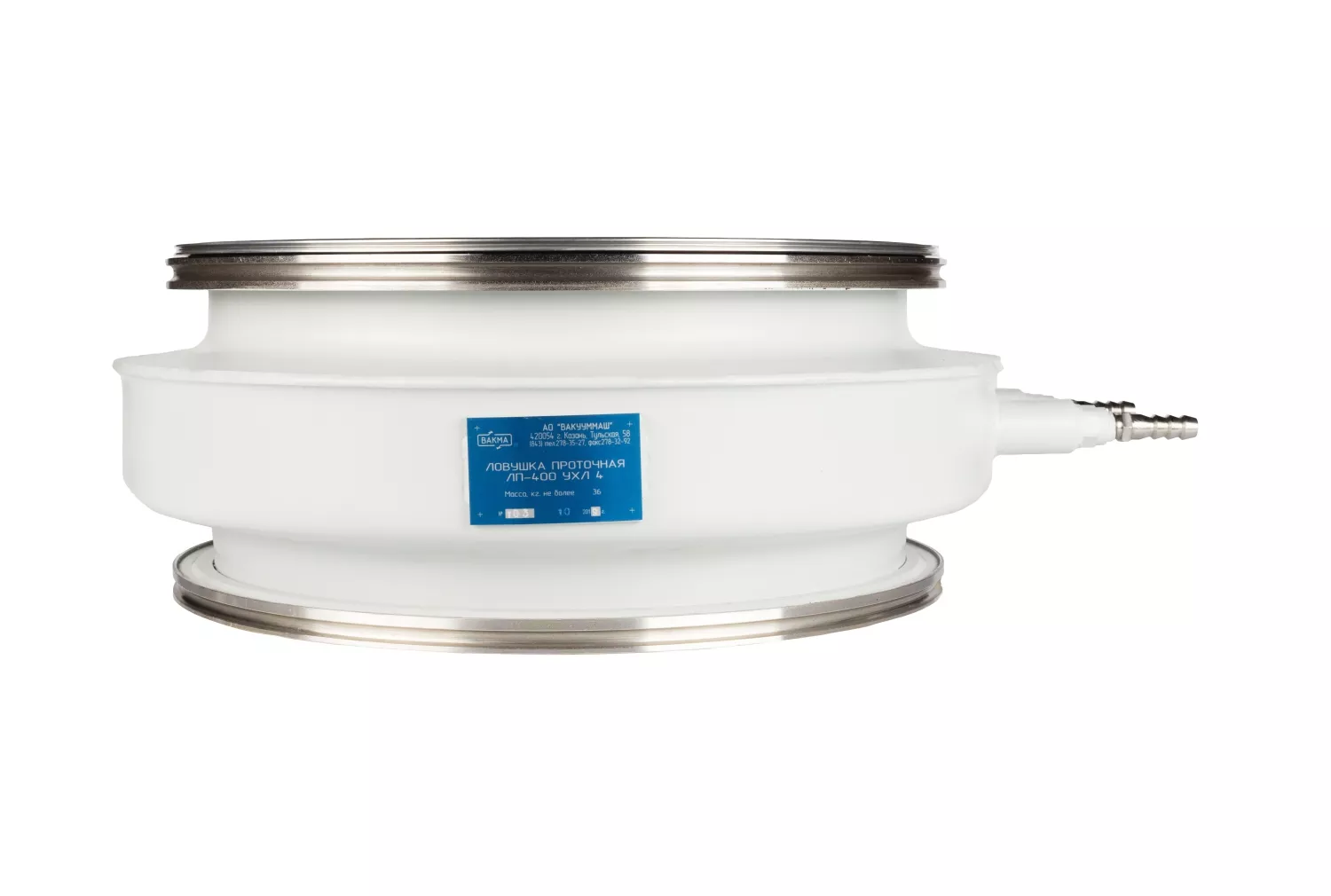

LP-400 Water Baffle

Проточная ловушка ЛП-400(Р): описание, преимущества, технические характеристики, габаритный чертёж, рекламные материалы

Преимущества ЛА-400(Р)

Технические характеристики ЛП-400(Р)

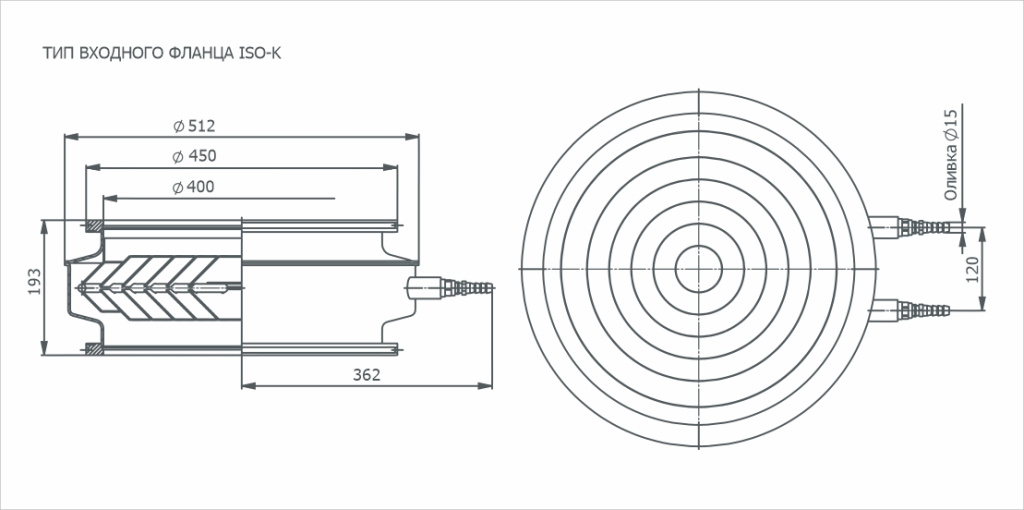

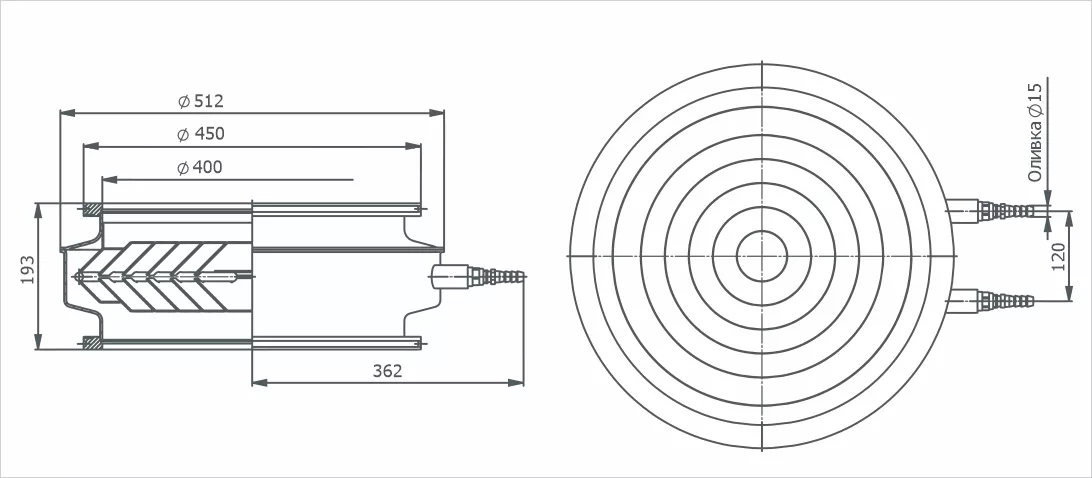

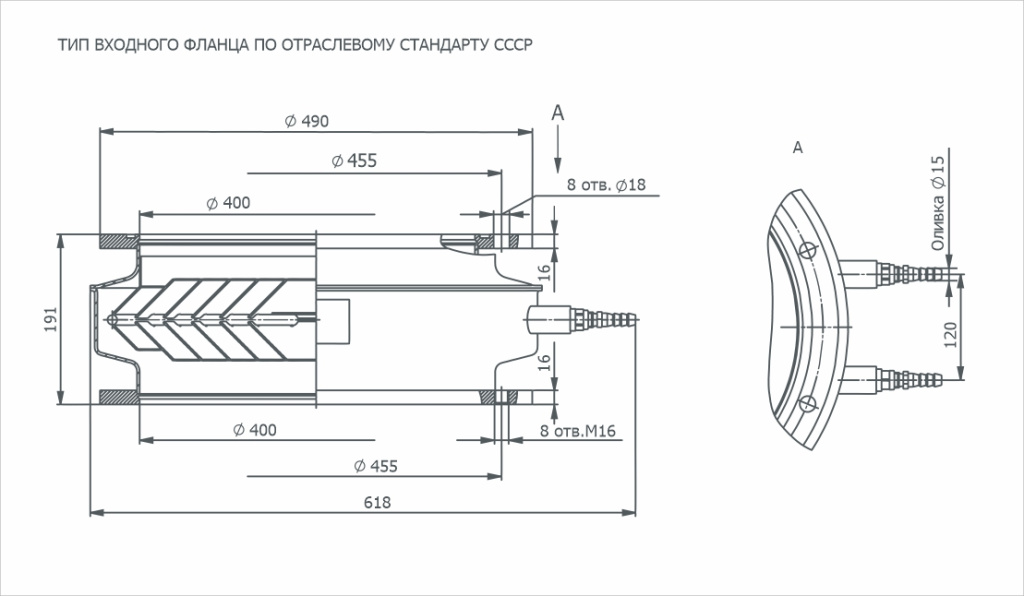

Габаритный чертёж ЛП-400(Р)
