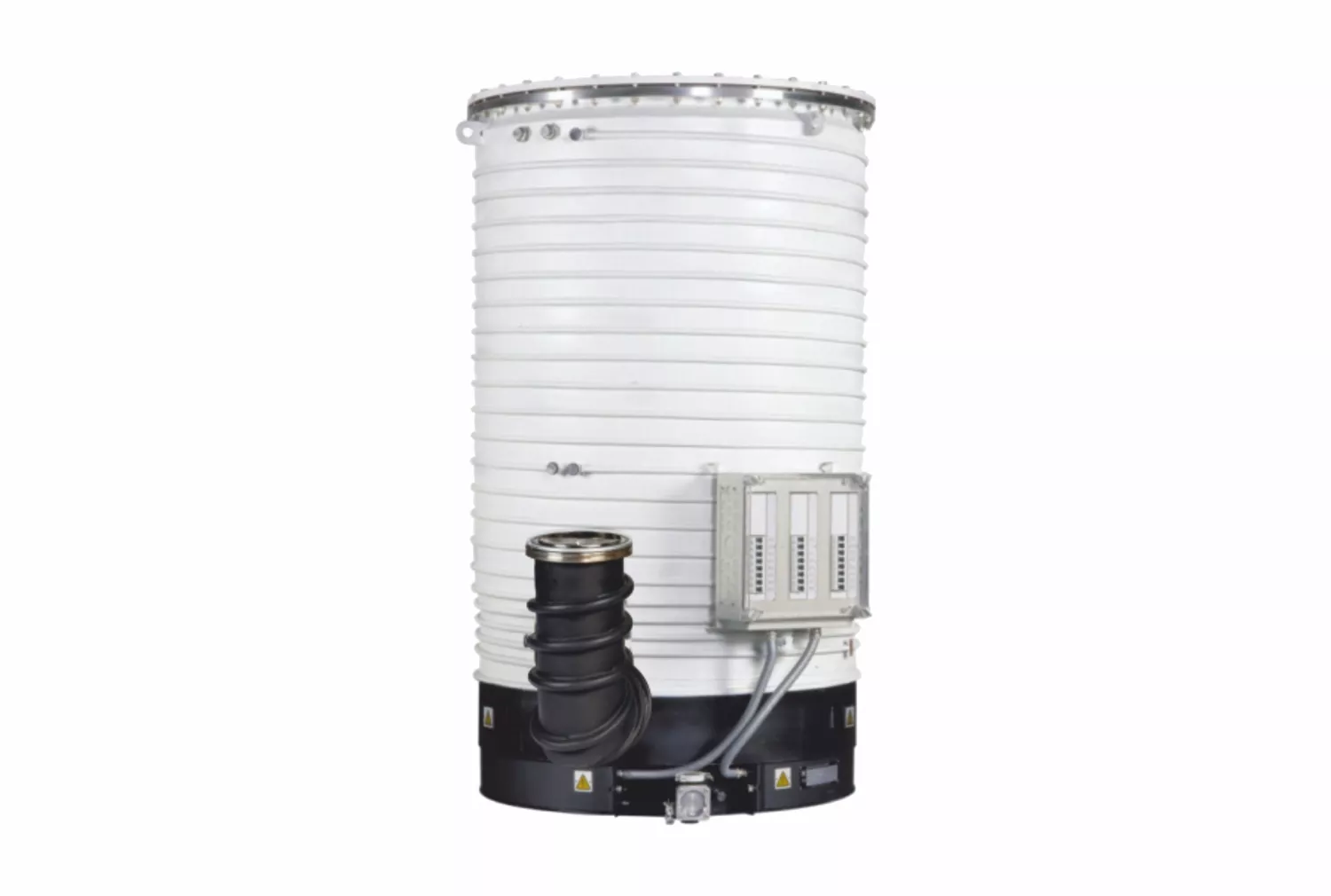

VDP-1000 Oil Diffusion Pump

VDP-1000 Oil Diffusion Pump

Есть в наличии

Добавить в сравнение

Распечатать страницу

Нет в наличии

Description

Dimensions

VDP-1000 Oil Diffusion Pump Type: Oil Pressure range: high vacuum Speed of action: 45000 l/s ✦ High vacuum connection DN 1000 ISO-F ✦ Forevacuum connection DN 160 ISO-K ✦ Carbon steel housing material, stainless steel bottom ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 590 m3/h ✦ Type of electrical connection directly through the connector or a block of electric switches ✦ Supply voltage 220/380V ✦ Power 24 kW ✦ Pump fluid filling, min / max, 15.0/25.00 l Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description OIL DIFFUSION PUMP VDP-1000 The Vacma VDP-1000 diffusion vacuum pump is a high-vacuum pump with a speed of action of 45,000 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for foring the pumped gas from the outlet pipe of the diffusion vacuum pump. As a rule, the VDP-1000 diffusion pump is used with an flow trap or an integrated trap that reduce the reverse flow of working fluid vapors into the pumped volume. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved. The VDP-1000 vacuum pump includes a steam line - a four-stage nozzle system with a fairly simple principle of operation - it consists in the process of diffusion of the molecules of the pumped gas into the jet flowing from the nozzles of the working fluid (steam). ✔ According to consumer reviews, the VDP-1000 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required. ✔ On request, the VDP-1000 diffusion vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. You can buy a VDP-1000 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.
Область применения НД-1000 Химическая промышленность Производство кристаллов Металлургия Машиностроение Производство электрооборудования Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление
Technical specifications OIL DIFFUSION PUMP VDP-1000

Наименование параметра и размера	Значение насоса НД-1000
Быстрота действия по воздуху при давлении: 1 Па (7,5х10^-3мм рт. ст.), л/с, не менее 1х10^-1Па (7,5х10^-4мм рт. ст.), л/с, не менее 1х10^-2Па (7,5х10^-5мм рт. ст.), л/с, не менее	3500 23000 45000
Быстрота действия форвакуумных насосов при давлении 26 Па (0,2 мм рт.ст) в выходном сечении должна быть, м³/ч (л/с), не менее	591(164)
Наибольшее выпускное давление, Па (мм рт. ст.), не менее	26,6 (0,2)
Предельное остаточное давление при температуре окружающего воздуха от +10⁰С до +35⁰С, Па (мм рт.ст.), не более	3х10^-4(2,25х10^-6)
Норма герметичности, Па х м³/с (л х мкм рт.ст./с), не более	1х10^-10 (7,5х10^-7)
Охлаждение насоса	Водяное
Расход воды на насос, м³/ч: - на корпус - на маслоотражатель	1,50 0,15
Напряжение питания трёхфазной, четырёхпроводной сети, В	400
Частота питающей сети, Гц	50
Потребляемая мощность, кВт	24
Количество нагревателей, шт	24
Марка рабочей жидкости (вакуумное минеральное масло)	ВАКМА ОЙЛ 500
Количество рабочей жидкости, л: - max - min	24 19
Габаритные размеры, мм, не более* - высота - длина - ширина со штепсельным разъёмом - ширина с блоком автоматов	1880 1500 1136 1180
Macca, кг, не более **	410
ПРИМЕЧАНИЕ: * Без заглушек и деталей их крепления. ** Без заглушек, деталей их крепления и рабочей жидкости.

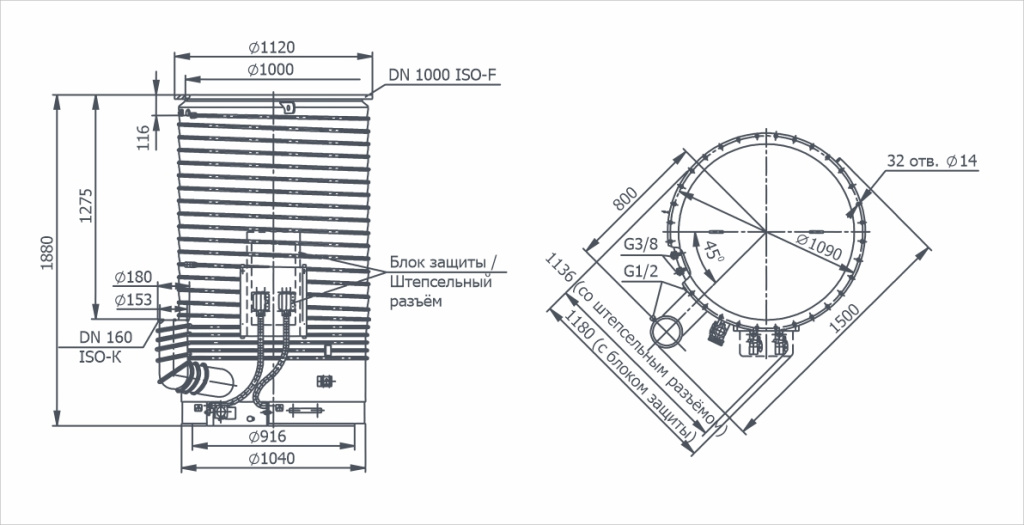

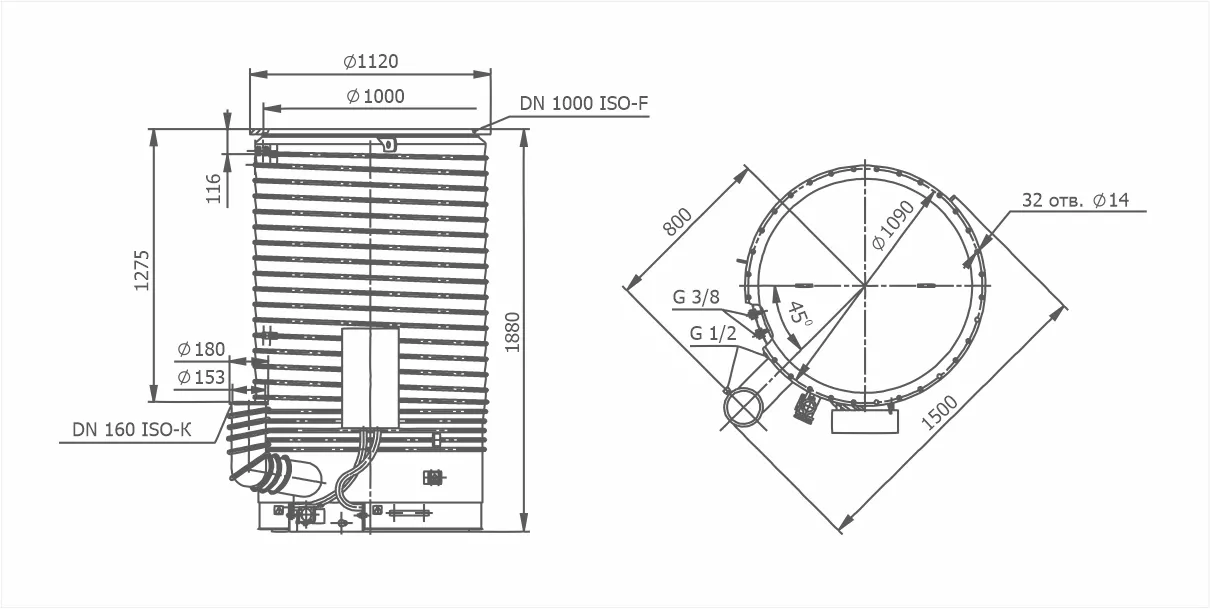

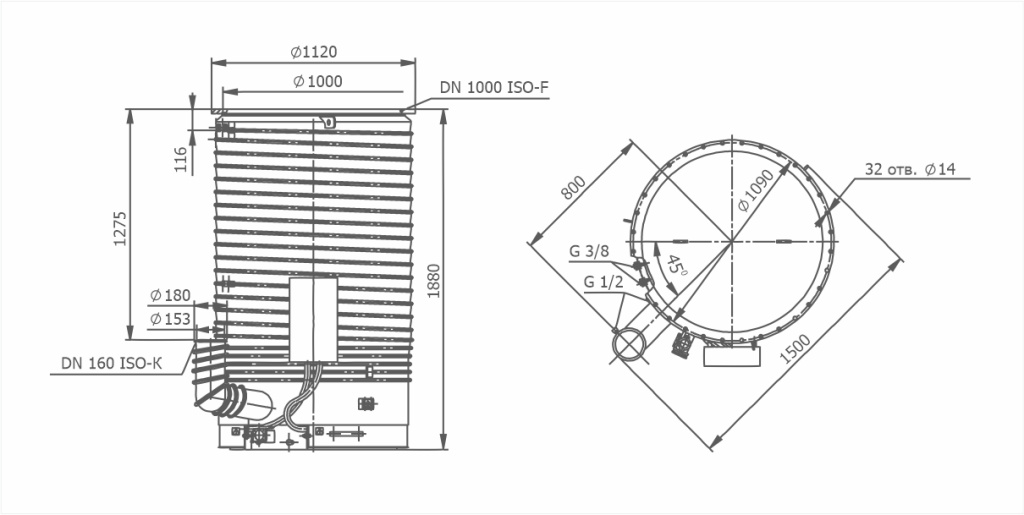

Dimensional drawing OIL DIFFUSION PUMP VDP-1000

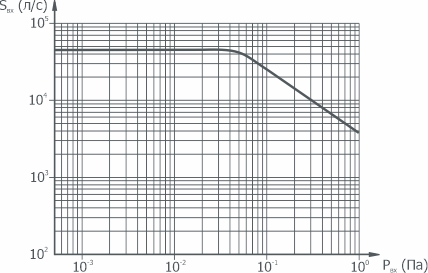

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP-1000

График зависимости быстроты действия от давления на входе в насос НД-1000 АО Вакууммаш
