Наименование параметра	Значение для ловушки ЛП-250(Р)
Проводимость при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), л/с, не менее	1130
Рекомендуемый расход воды (при температуре воды от 4 до 25⁰С), л/ч	100
Пролет паров масла при давлении 1,3х10^-2 Па (1х10^-4 мм рт.ст.), мг/мин	4,9х10^-3
Габаритные размеры, мм, не более - длина - ширина - высота	510 416 195 (199)
Масса, кг, не более	16,5 (29)

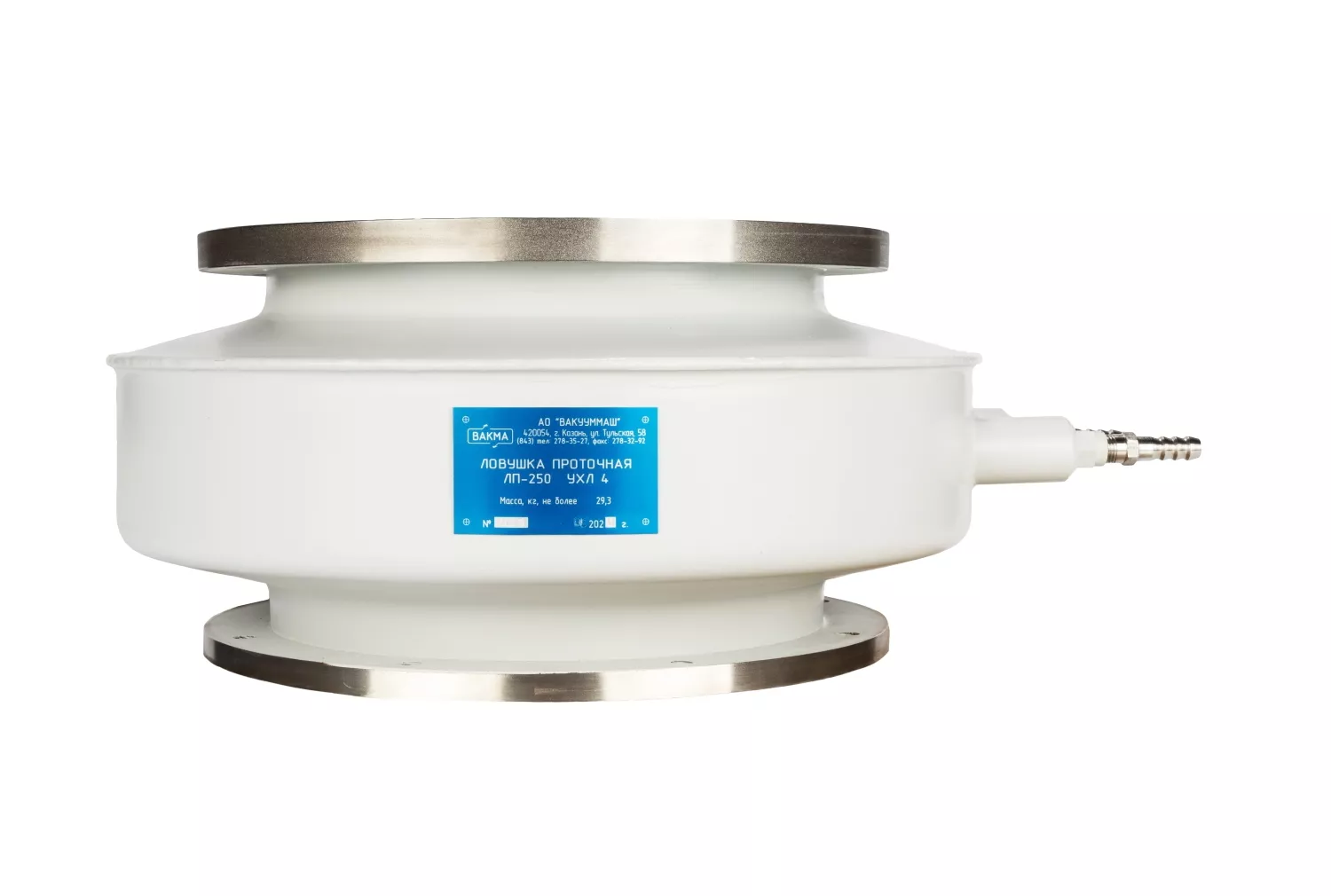

LP-250 Water Baffle

Проточная ловушка ЛП-250(Р): описание, преимущества, технические характеристики, габаритный чертёж, рекламные материалы

Преимущества ЛА-100(Р)

Технические характеристики ЛП-250(Р)

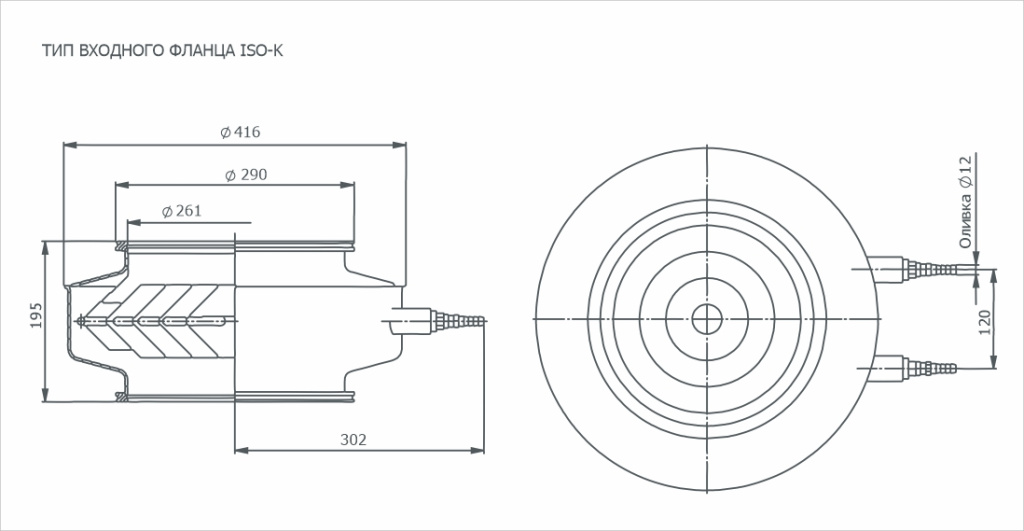

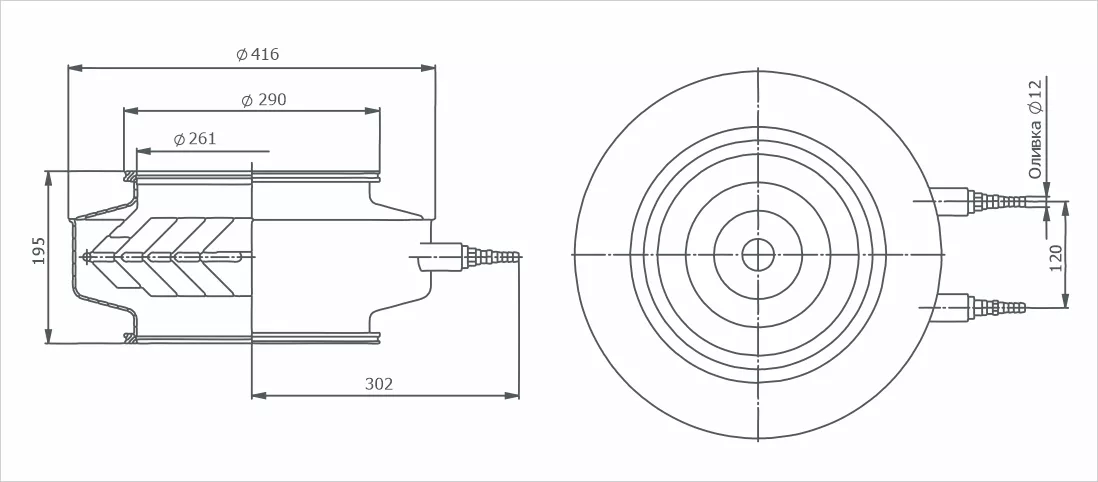

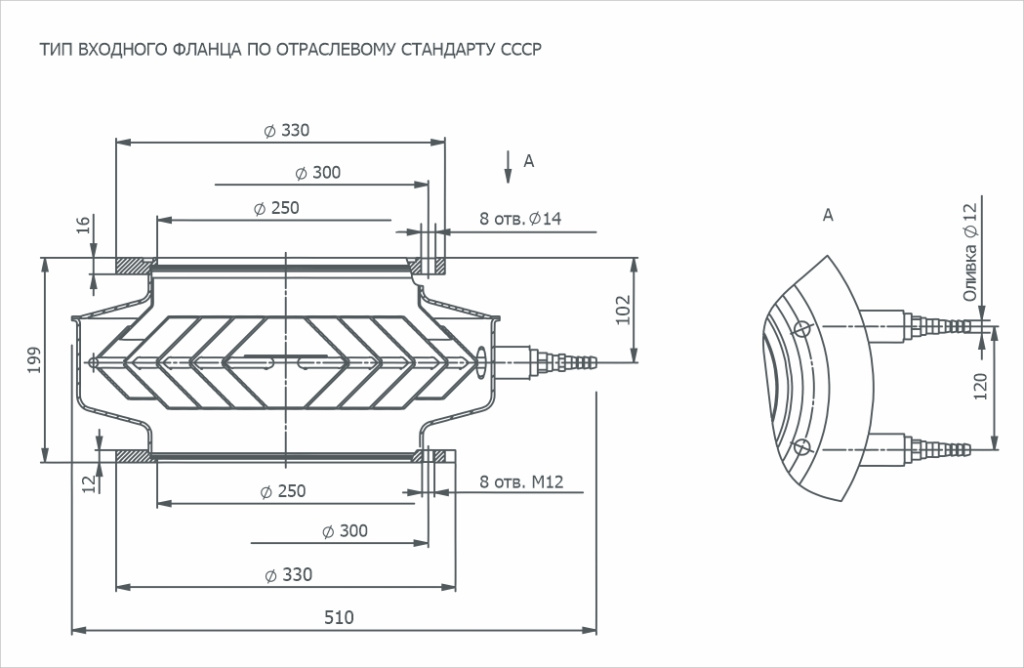

Габаритный чертёж ЛП-250(Р)
