LI-1000 Integrated Baffle
The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.
In stock
Copper construction
Features additional cooled baffle elements for capturing backstreaming oil vapors (more than the enlarged MU oil baffle)
Flangeless design
Climatic version of UHL4
12 months warranty
- View: Flange-free
- Type: Integrated
- The diameter of the conditional passage, mm: 1000
- Country / Manufacturer: Russia / Vacuummash (Vacma)
- Item Number: It is necessary to clarify this with the manager.
LI-1000 Integrated Baffle
₽1
Add to Comparison
Print the page
-
+
шт
FIND OUT THE PRICE
LI-1000 Integrated Baffle: description, advantages, dimensional drawing, promotional materials
-
The LI-1000 integrated flangeless trap functions as an oil baffle and is installed in the vacuum pump in place of the standard oil baffle. It features additional cooled baffle elements designed to capture backstreaming oil vapors. Compared with the MU oil baffle, the LI-1000 has a greater number of cooled elements covering the entire area of the high-vacuum inlet flange.
Advantages LI-1000 Integrated Baffle
- ■ Copper construction
- ■ Functions as an oil baffle
- ■ Features additional cooled baffle elements for capturing backstreaming oil vapors (more than the enlarged MU oil baffle)
- ■ Covers the entire area of the high-vacuum inlet flange of the oil diffusion pump
- ■ Climatic version: UHL4
- ■ 12-month warranty

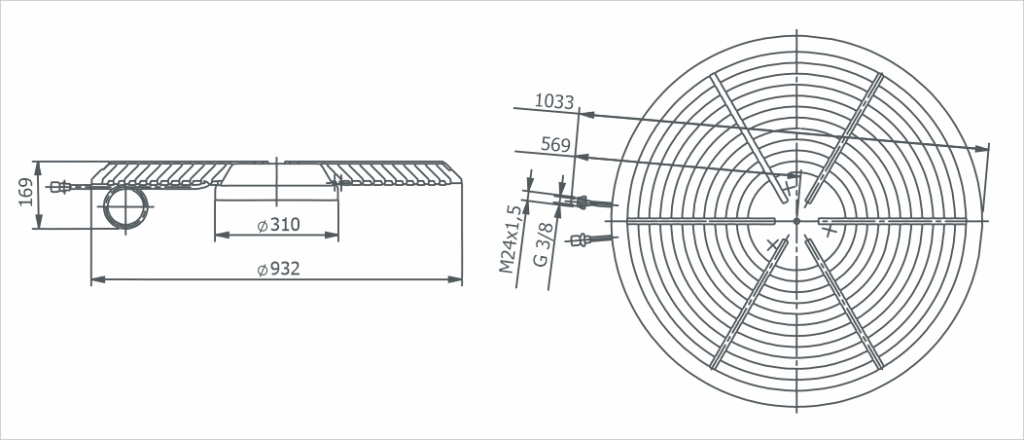

Dimensional Drawing LI-1000 Integrated Baffle
-
