LP-500 Water Baffle

The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.

In stock

Stainless steel housing

Coolant: water

Type of inlet flange ISO-K

Climatic version of UHL4

12 months warranty

View: Flanged
Type: Flow - through
The diameter of the conditional passage, mm: 500
Conductivity, l/s: 5800
Country / Manufacturer: Russia / Vacuummash (Vacma)

Item Number: It is necessary to clarify this with the manager.

We recommend with this product

LP-500 Water Baffle

₽1

Add to Comparison

Print the page

- +

шт

FIND OUT THE PRICE

Description

Dimensions

Documents

We recommend

LP-500 Water baffle: description, advantages, technical specifications, dimensional drawing, promotional materials

The LP-500 water baffle is designed to reduce the flow of working fluid vapors into the evacuated chamber by condensing them on the cooled surfaces of the baffle. The LP-500 is installed on the inlet flange of an oil diffusion pump.

Advantages Water baffle LP-500

■ Stainless steel housing
■ Coolant: water
■ Recommended water flow rate (at a water temperature of 4 to 25°C): 270 L/h
■ Climatic version: UHL4
■ Warranty: 12 months

Technical specifications Water baffle LP-500

Parameter Name	Trap Value LP-500 Water Baffle
Conductance at pressure 1,3х10^-2 Па (1х10^-4 мм рт.ст.), l/s, nevertheless	5800
Recommended water flow rate (at a Water Temperature of от 4 до 25⁰С), l/h	270
Oil vapor breakthrough at pressure 1,3х10^-2 Па (1х10^-4 mmHg), mg/min	2х10^-2
Overall dimensions, mm, no more than: - length - width - height	718 612 193
Weight, kg, no more than	41

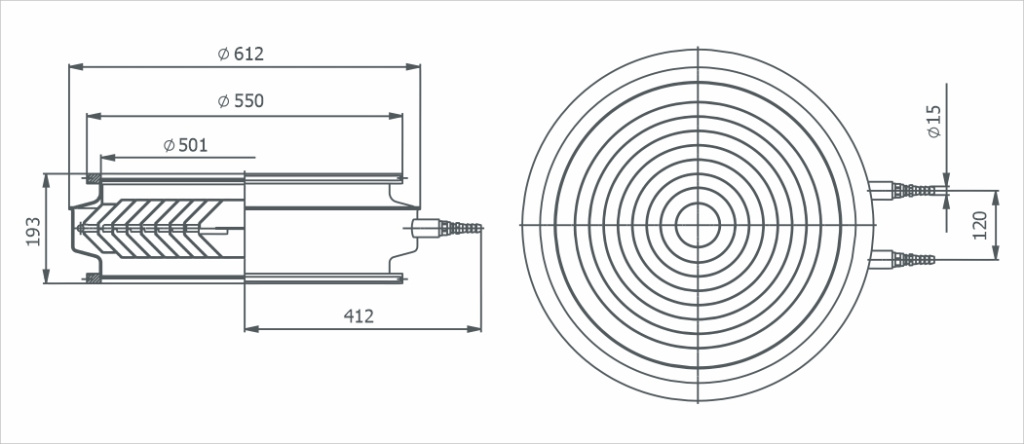

Dimensional drawing Water baffle LP-500
