VDP Jet-1000 Oil Diffusion vacuum Pump with Ejector stage
- Pressure range: High vacuum
- Type: Oil-and-gas (Diffusion)
- Speed of action, l/s: 28000
- Power, kW: 21,6
- Type of inlet flange: ISO-F
- Country / Manufacturer: Russia / Vacuummash (Vacma)
- Item Number: It is necessary to clarify this with the manager.
OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-1000: description, advantages, scope of application, technical specifications, dimensional drawing, promotional materials
-
The diffusion vacuum pump from the brand Vama (Vama) VDP Jet-1000 is a high-vacuum pump with a speed of action of 28000 l/s and is used in conjunction with an oil pre-vacuum pump. The pre-vacuum pump is necessary for pre-pumping and for the formation of the pumped gas from the outlet pipe of the diffusion vacuum pump.
-
✔ According to consumer reviews, the VDP Jet-1000 diffusion vacuum pump is a reliable, durable equipment with a large working resource for working in high vacuum conditions where high pumping speed is required.
-
✔ On request, the VDP Jet-1000 diffusion vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. You can buy a VDP Jet-1000 diffusion pump at a price from a Russian manufacturer on our website, for this you need to send an application, after which the specialists of JSC "Vacuummash" will contact you.
Advantages OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-1000
- ■ High vacuum connection DN 1000 ISO-F
- ■ Forevacuum connection DN 200 ISO-K
- ■ The case is made of carbon steel
- ■ Water cooling
- ■ Works only with the pre-vacuum pump
- ■ The speed of action of the forevacuum pump is not less than 1332 m3/h
- ■ Type of electrical connection directly through the connector or a block of electric switches
- ■ Supply voltage 400V
- ■ Power 21.6kW
- ■ Pump fluid filling, min / max, 12.0/18.0 l
Scope of application OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-1000
Chemical Industry Crystal Manufacturing Metallurgy Mechanical Engineering Electrical equipment ManufacturingScientific research activitiesSpace industry Nuclear industry Mining and Extraction of Natural ResourcesTechnical specifications OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-1000
|
Name of the parameter |
VDP Jet-1000 |
|
Speed of action by air at a pressure of m3/h (l/s),not less than: 1.0 Mpa (7.5 x 10-3 mm Hg), 11.2x10-1 Pa (9.0x10-4 mmHg) 11.0x10-1 Pa (7.5x10-4 mm Hg) 11.0x10-2 Pa (7.5x10-5 mm Hg) |
12600 (3500) 99000 (27500) 100800(28000) 93600 (26000) |
| Maximum exhaust pressure, Pa (mm Hg), not less | 40 (0,30) |
| Maximum residual pressure, Pa (mm Hg), no more | 2,5х10-4 (1,9х10-6) |
| The rate of tightness, Pa · m3/c, (l *mm Hg/c), no more | 1,0х10-10 (7,5х10-7) |
| Supply voltage, V | 400 |
| Weight, kg, no more* | 610 |
|
Overall dimensions, mm, no more** - height - length - width |
1832 1800 990 |
|
Note: * Without plugs, their fastening parts and working fluid. ** Without plugs and their fastening parts. |
|

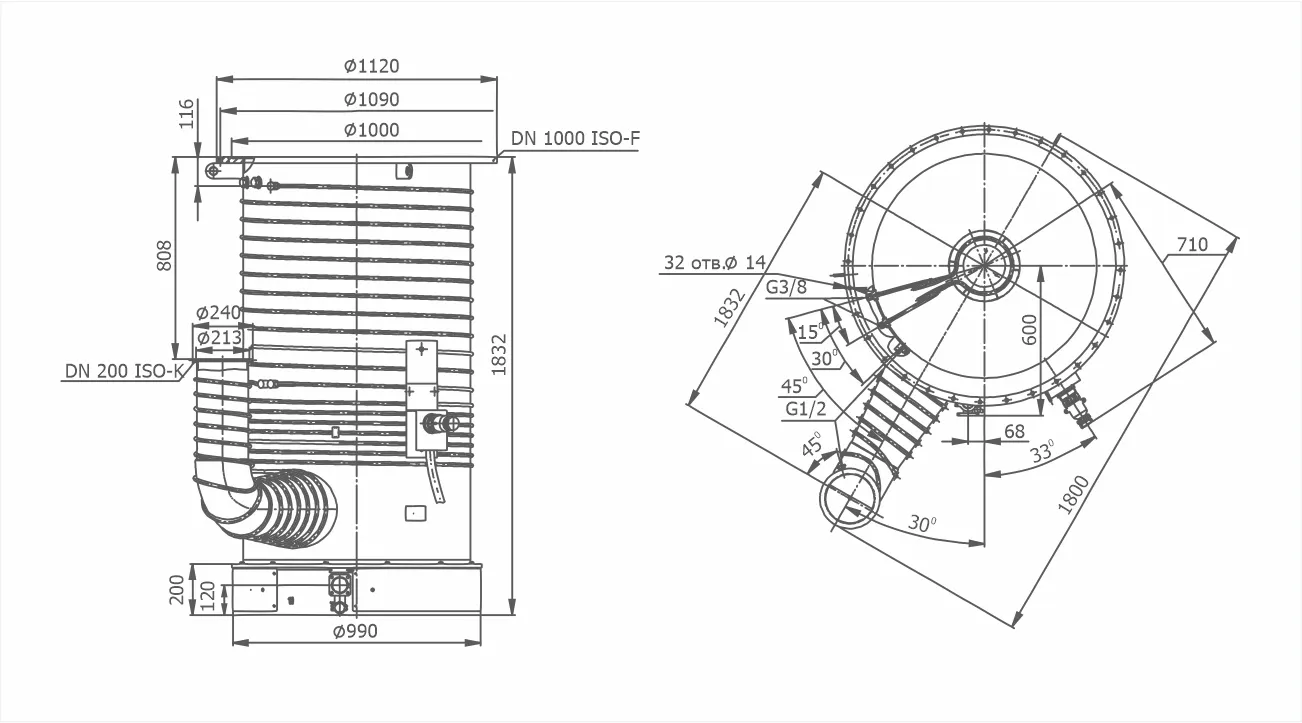

Dimensional drawing OIL DIFFUSION PUMP WITH EJECTOR STAGE VDP JET-1000

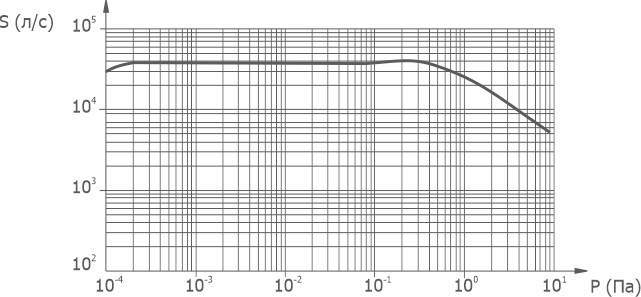

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VDP JET-1000
-
