LP-250 Water Baffle
The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.
In stock
Stainless steel housing
Coolant: water
Type of inlet flange ISO-K
Climatic version of UHL4
12 months warranty
- View: Flanged
- Type: Flow - through
- The diameter of the conditional passage, mm: 250
- Conductivity, l/s: 1130
- Country / Manufacturer: Russia / Vacuummash (Vacma)
- Item Number: It is necessary to clarify this with the manager.
LP-250 Water Baffle
₽1
Add to Comparison
Print the page
-
+
шт
FIND OUT THE PRICE
LP-250 Water baffle: description, advantages, technical specifications, dimensional drawing, promotional materials
-
The LP-250 water baffle is designed to reduce the flow of working fluid vapors into the evacuated chamber by condensing them on the cooled surfaces of the baffle. The LP-250 is installed on the inlet flange of an oil diffusion pump.
Advantages Water baffle LP-250
- ■ Stainless steel housing
- ■ Coolant: water
- ■ Recommended water flow rate (at a water temperature of 4 to 25°C): 100 L/h
- ■ Climatic version: UHL4
- ■ Warranty: 12 months
Technical specifications Water baffle LP-250
|
Parameter Name |
Trap Value LP-250 Water Baffle |
| Conductance at pressure 1,3х10-2 Па (1х10-4 мм рт.ст.), l/s, nevertheless | 1130 |
| Recommended water flow rate (at a Water Temperature of от 4 до 250С), l/h | 100 |
| Oil vapor breakthrough at pressure 1,3х10-2 Па (1х10-4 mmHg), mg/min | 4,9х10-3 |
|
Overall dimensions, mm, no more than: - length - width - height |
510 416 195 |
| Weight, kg, no more than | 16,5 |

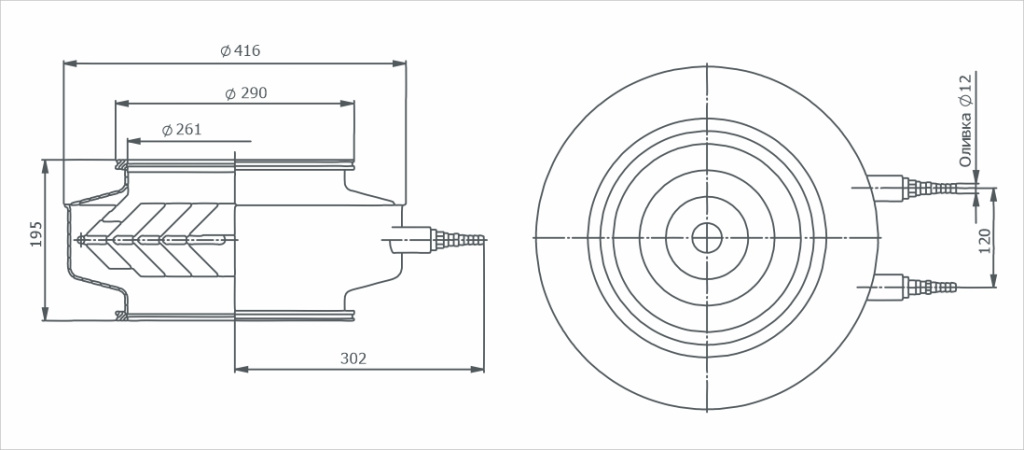

Dimensional drawing Water baffle LP-250
-
