LI-630 Integrated Baffle

The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.

In stock

Copper construction

Features additional cooled baffle elements for capturing backstreaming oil vapors (more than the enlarged MU oil baffle)

Flangeless design

Climatic version of UHL4

12 months warranty

View: Flange-free
Type: Integrated
The diameter of the conditional passage, mm: 630
Country / Manufacturer: Russia / Vacuummash (Vacma)

Item Number: It is necessary to clarify this with the manager.

We recommend with this product

LI-630 Integrated Baffle

₽1

Add to Comparison

Print the page

- +

шт

FIND OUT THE PRICE

Description

Dimensions

Documents

We recommend

LI-630 Integrated Baffle: description, advantages, dimensional drawing, promotional materials

The LI-630 integrated flangeless trap functions as an oil baffle and is installed in the vacuum pump in place of the standard oil baffle. It features additional cooled baffle elements designed to capture backstreaming oil vapors. Compared with the MU oil baffle, the LI-630 has a greater number of cooled elements covering the entire area of the high-vacuum inlet flange.

Advantages LI-630 Integrated Baffle

■ Copper construction
■ Functions as an oil baffle
■ Features additional cooled baffle elements for capturing backstreaming oil vapors (more than the enlarged MU oil baffle)
■ Covers the entire area of the high-vacuum inlet flange of the oil diffusion pump
■ Climatic version: UHL4
■ 12-month warranty

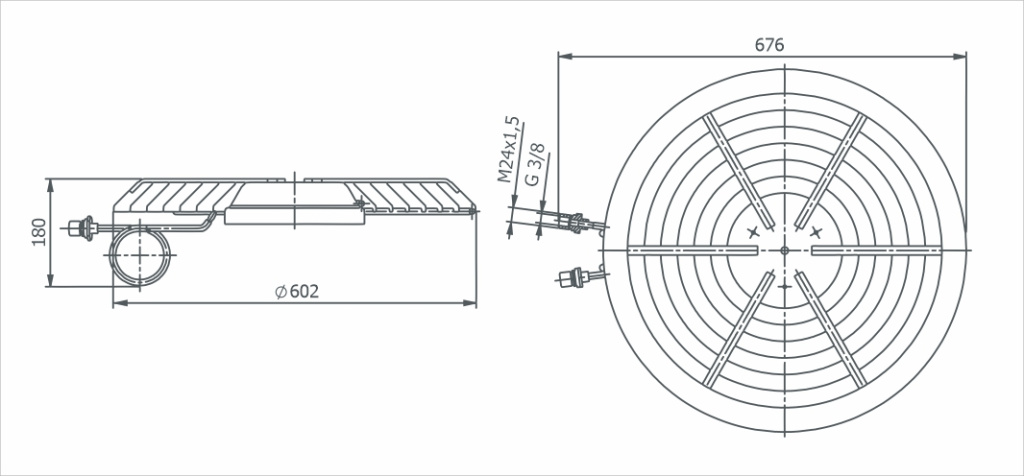

Dimensional Drawing LI-630 Integrated Baffle
