VBP-250/3000 Oil Booster vacuum Pump

VBP-250/3000 Oil Booster Pump Type: Oil Pressure range: high vacuum Speed of action: 2800 l/s ✦ High vacuum connection DN 250 ISO-K ✦ Forevacuum connection DN 100 ISO-K ✦ Carbon steel housing material ✦ Water cooling ✦ Works only with the pre-vacuum pump ✦ The speed of action of the forevacuum pump is not less than 90 m3/h ✦ Type of electrical connection directly through the connector ✦ Supply voltage 380V ✦ Power 6 kW ✦ Pump fluid filling, min / max, 1.0/1.4 l Scope of application: chemical industry; crystal production; metallurgy; mechanical engineering; production of electrical equipment; research activities; mining Description OIL BOOSTER PUMP VBP-250/3000 The booster vacuum pump from the Vacma brand VBP-250/3000 with a speed of action of 2,800 l/s allows you to achieve an average vacuum. The external distinguishing feature of the booster pump from the diffusion pump is the larger size of the boiler and several conical water-cooled housings installed on the boiler. A booster pump, unlike a diffusion pump, operates with an increased density of the working fluid (steam), achieved primarily by increasing the heater power. The VBP-250/3000 pump is used in conjunction with an oil pre-vacuum pump. It is also possible to install a booster pump at the inlet with a flow vacuum trap. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved. ✔ According to consumer reviews, the VBP-250/3000 booster vacuum pump provides high performance, which is achieved thanks to the unique design of pumping equipment, the pump is able to efficiently pump out large volumes of gas in a short period of time. Booster pump VBP-250/3000 is made of high-quality materials that provide reliable, stable operation and high durability. ✔ Contact our specialists to buy a booster vacuum pump VBP-250/3000 at a price from the Russian manufacturer JSC "Vacuummash". Область применения 2НВБМ-250(Р)/3000 Нефтехимическая промышленность Металлургия Машиностроение Производство электрооборудования Строительная отрасль Научно-исследовательская деятельность Космическая отрасль Атомная отрасль Вакуумное напыление Technical specifications OIL BOOSTER PUMP VBP-250/3000

Наименование параметра и размера	Значение для насоса 2НВБМ-250(Р)/3000
Быстрота действия в диапазоне рабочих давлений на входе в насос от 1,3х100 до 1,3х10-1 Па(от 1х10-2 до 1х10-3 мм рт.ст.), л/с	2800
Наибольшее выпускное давление, Па (мм рт.ст.), не менее	200 (1,5)
Потребляемая мощность при номинальном напряжении 400В для сети трёхфазного тока, Вт	6000
Охлаждение насоса	Водяное
Расход охлаждающей воды температурой от +10°С до +20°С, л/ч, не менее	360
Объём заливаемой рабочей жидкости, л	17
Марка рабочей жидкости (вакуумное минеральное масло)	VACMA OIL 300
Масса, кг, не более*	160
Габаритные размеры, мм, не более** - высота - длина - ширина	1730 740 665
ПРИМЕЧАНИЕ: * Без заглушек, деталей их крепления и рабочей жидкости. ** Без заглушек и деталей их крепления.

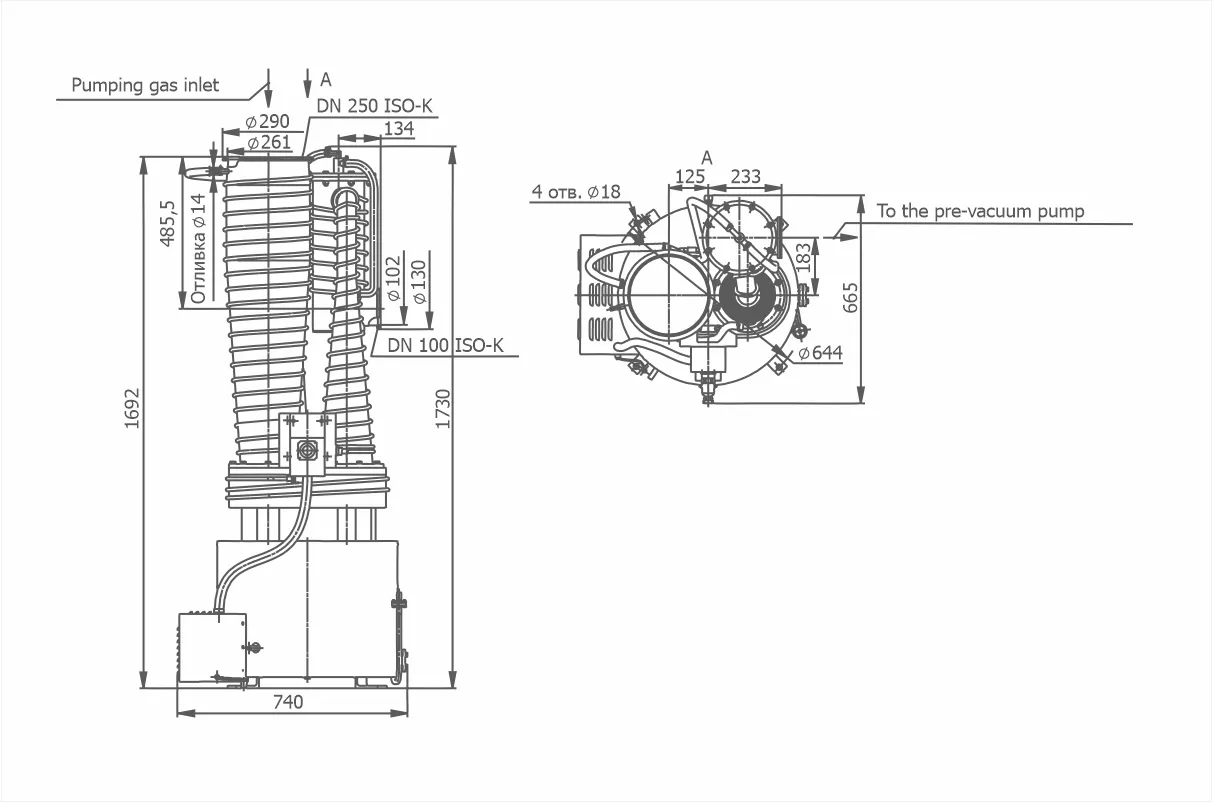

Dimensional drawing OIL BOOSTER PUMP VBP-250/3000

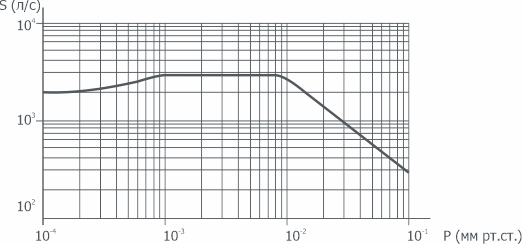

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VBP-250/3000
