VBP-400/6000 Oil Booster vacuum Pump

The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.

In stock

Carbon steel body material

It only works in conjunction with a pre-vacuum pump

The speed of action of the pre-vacuum pump is not less than 180 m3/h

Supply voltage 400 V (alternating current)

Water cooling

Type of inlet flange ISO-K

Climatic version of UHL4

18 months warranty

Complies with the requirements of the Technical Regulations of the Customs Union

Pressure range: Medium vacuum
Type: Oil-and-gas (Booster)
Speed of action, l/s: 6200
Power, kW: 12
Type of inlet flange: ISO-K
Country / Manufacturer: Russia / Vacuummash (Vacma)

Item Number: It is necessary to clarify this with the manager.

All specifications

We recommend with this product

VBP-400/6000 Oil Booster vacuum Pump

₽1

Add to Comparison

Print the page

- +

шт

FIND OUT THE PRICE

Description

Specifications

Dimensions

Documents

We recommend

OIL BOOSTER VACUUM PUMP VBP-400/6000: description, advantages, scope of application, technical specifications, dimensional drawing, promotional materials

The booster vacuum pump from the Vacma brand VBP-400/3000 with a speed of action of 6,200 l/s allows you to achieve an average vacuum. The external distinguishing feature of the booster pump from the diffusion pump is the larger size of the boiler and several conical water-cooled housings installed on the boiler. A booster pump, unlike a diffusion pump, operates with an increased density of the working fluid (steam), achieved primarily by increasing the heater power. The VBP-400/3000 pump is used in conjunction with an oil pre-vacuum pump. It is also possible to install a booster pump at the inlet with a flow vacuum trap. The mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved.
✔According to consumer reviews, the VBP-400/3000 booster vacuum pump provides high performance, which is achieved thanks to the unique design of pumping equipment, the pump is able to efficiently pump out large volumes of gas in a short period of time. Booster pump VBP-400/3000 is made of high-quality materials that provide reliable, stable operation and high durability.
✔ On request, the VBP-400/3000 booster vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. Contact our specialists to buy a booster vacuum pump VBP-400/3000 at a price from the Russian manufacturer JSC "Vacuummash".

Advantages OIL BOOSTER VACUUM PUMP VBP-400/6000

■ High vacuum connection DN 400 ISO-K
■ Forevacuum connection DN 160 ISO-K
■ The case is made of carbon steel
■ Water cooling
■ Works only with the pre-vacuum pump
■ The speed of action of the forevacuum pump is not less than 180 m3/h
■ Type of electrical connection directly through the connector or a block of electric switches
■ Supply voltage 400V
■ Power 12 kW
■ Pump fluid filling, min / max, 1.0/1.4 l

Scope of application OIL BOOSTER VACUUM PUMP VBP-400/6000

Chemical Industry Crystal Manufacturing Metallurgy Mechanical Engineering Electrical equipment Manufacturing Scientific research activities Space industry Nuclear industry Mining and Extraction of Natural Resources

Technical specifications OIL BOOSTER VACUUM PUMP VBP-400/6000

Name of the parameter	VBP-400/6000
Speed of action in the range of operating pressures from 1.33 to 1.33 x 10^-1 Pa (from 1 x 10^-2 to 1x10^-3 mm Hg), l/s*	6200
The highest exhaust pressure, atan inlet pressure of 1.33 Pa (1x10^-2 mm Hg),Pa (mm Hg), not less*	200 (1,5)
Power consumption at rated voltage 400 V for a three-phase network current, W	12000
Recommended speed of action of the forevacuum pump, l/s, not less	50
Cooling water consumption temperature from +10⁰C to +20⁰C l/h, not less	600
Volume of the filled working fluid, l	47
Weight, kg, no more **	550
Overall dimensions, mm, no more *** - height - width - length	2414 1130 1250
Note: * When the heater power is from nominal to maximum. At the power of the heaters from nominal to minimum, it is possible to reduce the value of the parameters by 30%. Without plugs, their fastening parts and working fluid. * Without plugs and their fastening parts.

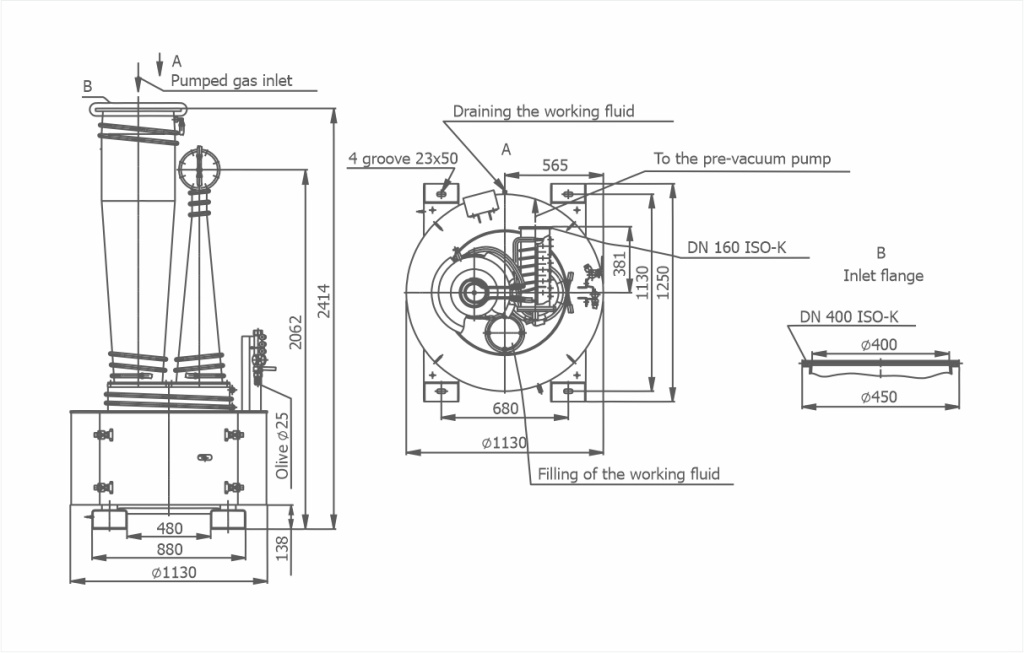

Dimensional drawing OIL BOOSTER VACUUM PUMP VBP-400/6000

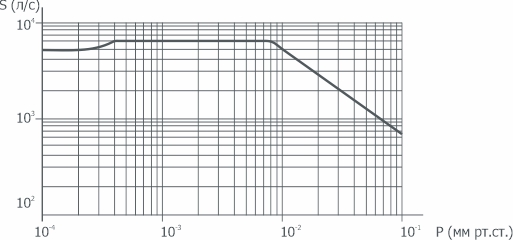

Graph of the dependence of the speed of action on the pressure at the inlet to the pumpVBP-400/6000
