VBP-630/18000 Oil Booster vacuum Pump
- Pressure range: Medium vacuum
- Type: Oil-and-gas (Booster)
- Speed of action, l/s: 18600
- Power, kW: 36
- Type of inlet flange: ISO-F
- Country / Manufacturer: Russia / Vacuummash (Vacma)
- Item Number: It is necessary to clarify this with the manager.
OIL BOOSTER VACUUM PUMP VBP-630/18000: description, advantages, scope of application, technical specifications, dimensional drawing, promotional materials
-
The booster vacuum pump from the Vacma brand VBP-630/18000 with a speed of action of 18,600 l/s allows you to achieve an average vacuum. The external distinguishing feature of the booster pump from the diffusion pump is the larger size of the boiler and several conical water-cooled housings installed on the boiler. A booster pump, unlike a diffusion pump, operates with an increased density of the working fluid (steam), achieved primarily by increasing the heater power. The VBP-630/18000 pump is used in conjunction with an oil pre-vacuum pump. It is also possible to install a flow-through vacuum trap at the inlet of the booster pump. Mineral vacuum oil is used as the working fluid in the pump, thanks to which the operational properties and durability of vacuum equipment are improved.
-
✔According to consumer reviews, the VBP-630/18000 booster vacuum pump provides high performance, which is achieved thanks to the unique design of pumping equipment, the pump is able to efficiently pump out large volumes of gas in a short period of time. Booster pump 630/18000 is made of high-quality materials that ensure reliable, stable operation and high durability.
-
✔ Upon request, the VBP-630/18000 booster vacuum pump can have an electrical connection type: a block of automatic machines or a direct connection via a connector, the price will depend on the configuration. Contact our specialists to buy a booster vacuum pump VBP-630/18000 at a price from the Russian manufacturer "Vacuummash" JSC
Advantages OIL BOOSTER VACUUM PUMP VBP-630/18000
- ■ High vacuum connection DN 630 ISO-F
- ■ Forevacuum connection DN 160 ISO-K
- ■ The case is made of carbon steel
- ■ Water cooling
- ■ Works only with the pre-vacuum pump
- ■ The speed of action of the forevacuum pump is not less than 360 m3/h
- ■ Type of electrical connection directly through the connector or a block of electric switches
- ■ Supply voltage 400V
- ■ Power 36 kW
- ■ Pump fluid filling, min / max, 1.0/1.4 l
Scope of application OIL BOOSTER VACUUM PUMP VBP-630/18000
Chemical Industry Crystal Manufacturing Metallurgy Mechanical Engineering Electrical equipment ManufacturingScientific research activitiesSpace industry Nuclear industry Mining and Extraction of Natural ResourcesTechnical specifications OIL BOOSTER VACUUM PUMP VBP-630/18000
|
Name of the parameter |
VBP-630/18000 |
| Speed of action in the range of operating pressures from 1.33 to 1.33 x 10-1 Pa (from 1 x 10-2 to 1x10-3 mm Hg), l/s* | 18600 |
| The highest exhaust pressure, atan inlet pressure of 1.33 Pa (1x10-2 mm Hg),Pa (mm Hg), not less* | 200 (1,5) |
| Power consumption at rated voltage 400 V for a three-phase network current, W | 36000 |
| Recommended speed of action of the forevacuum pump, l/s, not less | 150 |
| Cooling water consumption temperature from +100C to +200C l/h, not less | 1800 |
| Volume of the filled working fluid, l | 90 |
| Weight, kg, no more ** | 1400 |
|
Overall dimensions, mm, no more *** - height - width - length |
2682 1450 1630 |
|
Note: * When the heater power is from nominal to maximum. At the power of the heaters from nominal to minimum, it is possible to reduce the value of the parameters by 30%. ** Without plugs, their fastening parts and working fluid. *** Without plugs and their fastening parts. |
|

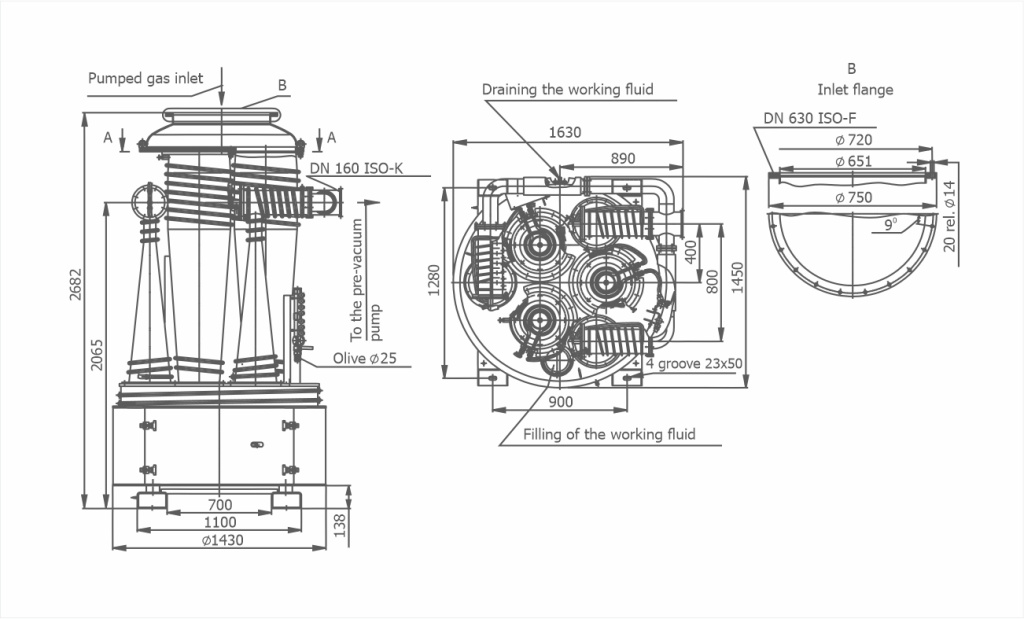

Dimensional drawing OIL BOOSTER VACUUM PUMP VBP-630/18000

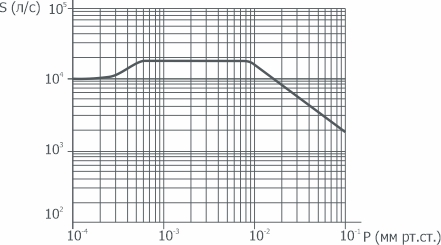

Graph of the dependence of the speed of action on the pressure at the inlet to the pump VBP-630/18000
-18000_график.jpg "Graph of the dependence of the speed of action on the pressure at the inlet to the pump VBP-630/18000")
-
