ML-630 Multi Baffle
The photo is a demo. The appearance may vary slightly. We reserve the right to make product modifications that do not affect the technical characteristics.
In stock
Stainless steel housing
Coolants: water and liquid nitrogen
Two cooling circuits: the outer circuit uses water to cool the housing, while the inner circuit is cooled with liquid nitrogen
Type of inlet flange ISO-F
Climatic version of UHL4
12 months warranty
- View: Flanged
- Type: The Multitrap
- The diameter of the conditional passage, mm: 630
- Country / Manufacturer: Russia / Vacuummash (Vacma)
- Item Number: It is necessary to clarify this with the manager.
ML-630 Multi Baffle
₽1
Add to Comparison
Print the page
-
+
шт
FIND OUT THE PRICE
ML-630 Vacuum Multi-baffle: description, advantages, dimensional drawing, promotional materials
-
The ML-630 vacuum multi-trap is designed to reduce the flow of working fluid vapors into the evacuated chamber by condensing them on the cooled surfaces of the cryogenic trap. The ML-630 can be cooled with water, refrigerant, or liquid nitrogen. When a coolant with a temperature below 0°C is used, the trap provides additional pumping speed for water vapor.
Advantages of the ML-630
- ■ Stainless steel housing
- ■ ISO-F inlet flange
- ■ Coolants: water and liquid nitrogen
- ■ Two cooling circuits: the outer circuit uses water to cool the housing, while the inner circuit is cooled with liquid nitrogen
- ■ Climatic version: UHL4
- ■ 12-month warranty

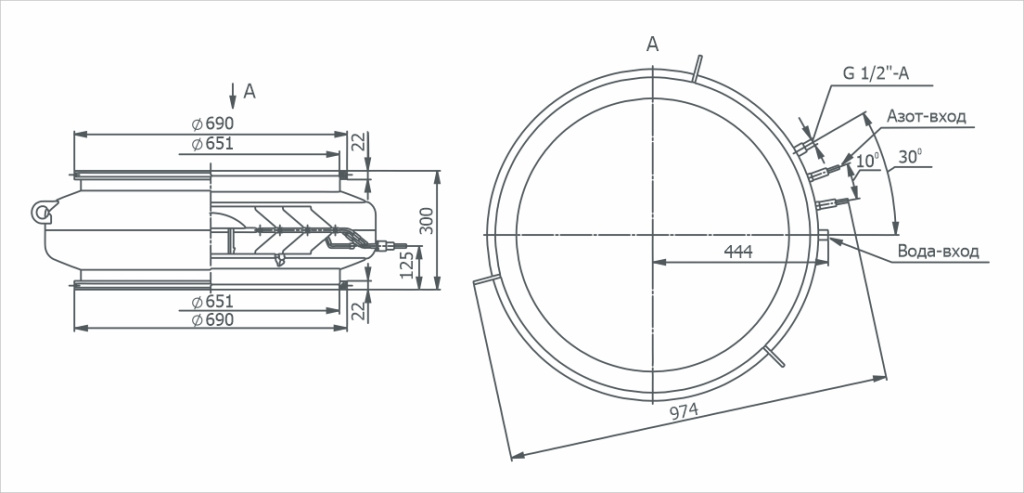

ML-630 Dimensional Drawing
-
